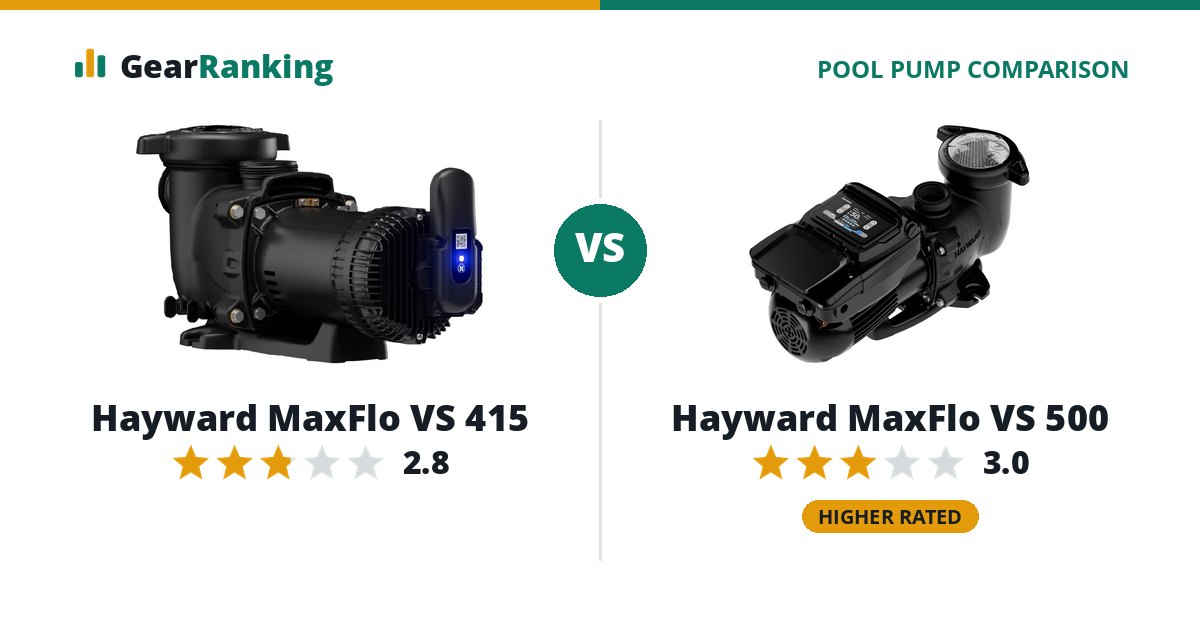

Hayward MaxFlo VS 500
#24 in In-GroundFull review
An efficient small pump for modest in-ground pools with 1.5 in plumbing, best as a replacement for an old MaxFlo.
INYOPools $1,749$1,749
The Hayward MaxFlo VS 500 is the better pool pump overall, rated 3.0 to 2.8. The Hayward MaxFlo VS 500 leads on efficiency. The Hayward MaxFlo VS 415 costs $67.01 less ($1,681.99 vs $1,749).
Hayward MaxFlo VS 415
#30 in In-GroundFull review
A budget app-controlled pump for smaller in-ground pools, for owners replacing an old MaxFlo who don’t have an automation system.
INYOPools $1,681.99$1,681.99
Prices were last checked October 27, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Hayward MaxFlo VS 500 for efficiency (WEF 10.2, 28% above the ENERGY STAR minimum for its size vs WEF 9.6, 20% above the ENERGY STAR minimum for its size).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every in-ground pool pump; a clear win is highlighted. How we rank explains each one.
| Factor weight | Hayward MaxFlo VS 500 | Hayward MaxFlo VS 415 |
|---|---|---|
| Overall rating | 3.0/5 | 2.8/5 |
| Efficiency 35% | 37 WEF 10.2, 28% above the ENERGY STAR minimum for its size | 20 WEF 9.6, 20% above the ENERGY STAR minimum for its size |
| Value 25% | 16 $1,749 for 1.6 HP ($1,060 per HP) | 18 $1,682 for 1.6 HP ($1,019 per HP) |
| Warranty 15% | 50 3-year warranty | 50 3-year warranty |
| Controls 15% | 85 Built-in schedule, optional wi-fi module, works with hayward omnilogic, hayward omnihub, hayward omnipl, hayward prologic, hayward aqualogic, hayward e-command 4, hayward oncommand, hayward omnix, pentair automation (universal comms), jandy automation (universal comms) | 85 Built-in schedule, optional wi-fi module, works with hayward omnix |
| Noise 10% | 50 noise not published (neutral score used) | 50 noise not published (neutral score used) |
Specifications
| Hayward MaxFlo VS 500 | Hayward MaxFlo VS 415 | |
|---|---|---|
| Efficiency ratings | ||
| Pump type | In-ground (self-priming) | In-ground (self-priming) |
| Motor | Variable speed | Variable speed |
| Rated horsepower (DOE) | 1.6 HP | 1.6 HP |
| Hydraulic horsepower (DOE) | 0.6 HP | 0.5 HP |
| Weighted energy factor (WEF) | 10.2 kgal/kWh | 9.6 kgal/kWh |
| ENERGY STAR minimum for its size | 7.9 kgal/kWh | 8 kgal/kWh |
| ENERGY STAR certified | Yes | No |
| Pump | ||
| Voltage | 115/230 V | 115/230 V |
| Speed range | 600 to 3,450 rpm | 600 to 3,450 rpm |
| Maximum flow | 96 gpm | 97 gpm |
| Pipe size | 2 in | 2 in |
| Size (W × D × H) | 9.8 × 25.5 × 11.1 in | 9.8 × 25.1 × 11.1 in |
| Controls | ||
| Built-in schedule | Yes | Yes |
| Freeze protection | Yes | Yes |
| Wi-Fi | Optional module | Optional module |
| App | Hayward OmniX | Hayward OmniX |
| Automation compatibility | Hayward OmniLogic, Hayward OmniHub, Hayward OmniPL, Hayward ProLogic, Hayward AquaLogic, Hayward E-Command 4, Hayward OnCommand, Hayward OmniX, Pentair automation (Universal Comms), Jandy automation (Universal Comms) | Hayward OmniX |
| Warranty and models | ||
| Warranty | 3 years | 3 years |
| Warranty terms | Expert Line pump sold only through pool pros: 3 years parts and labor when sold by a Totally Hayward partner (sell sheet); the product page lists 3 years parts and 1 year labor. Exclusions and other terms at hayward.com/expert; Hayward does not publish separate terms for online buyers. | Sold only through pool pros: 3 years parts when sold by a Totally Hayward partner (sell sheet); the product page lists 3 years parts and 1 year labor. Exclusions and other terms at hayward.com/expert. |
| Released | 2020-07 | 2025 |
