Pentair IntelliFlo3 VSF 1.5 HP
#6 in In-GroundFull review
For ordinary in-ground pools replacing a 1 to 1.5 HP pump, by owners who want app control and constant-flow filtering built into the pump.
Amazon $1,291.05$1,291.05

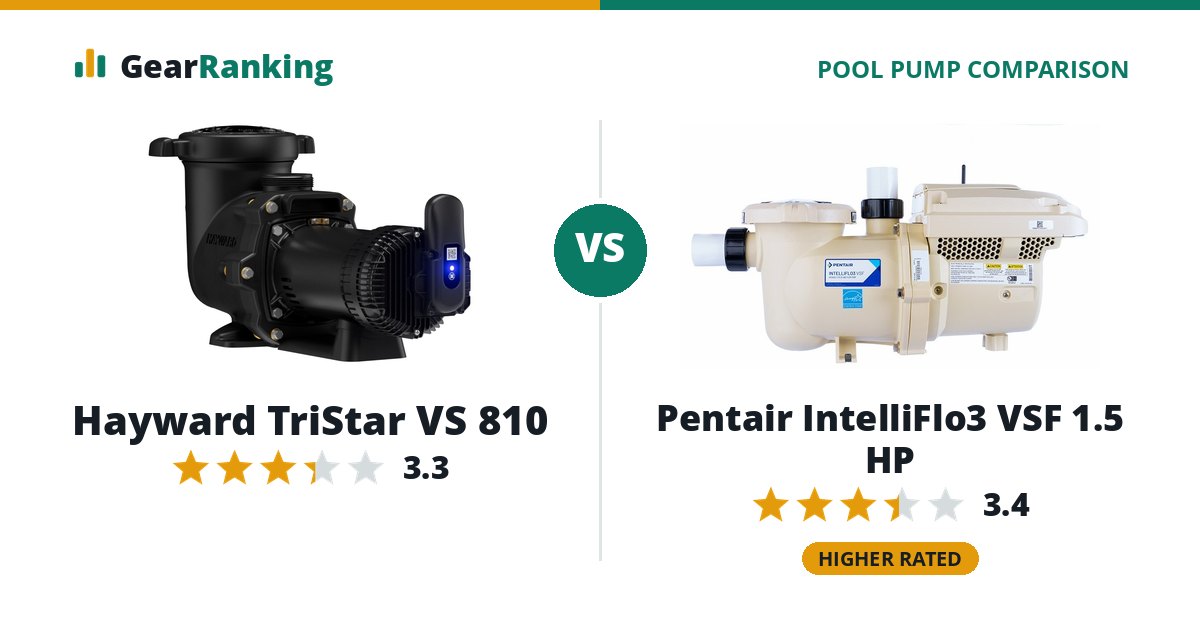

The Pentair IntelliFlo3 VSF 1.5 HP and the Hayward TriStar VS 810 are evenly matched, rated 3.4 and 3.3. The Pentair IntelliFlo3 VSF 1.5 HP leads on efficiency and controls.
Hayward TriStar VS 810
#10 in In-GroundFull review
A small 1.25 HP TriStar for modest in-ground pools, best for owners who want app schedules without buying an automation system.
Hayward (find a dealer)Prices were last checked October 27, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Pentair IntelliFlo3 VSF 1.5 HP for efficiency (WEF 9.4, 37% above the ENERGY STAR minimum for its size vs WEF 9.1, 30% above the ENERGY STAR minimum for its size) and controls (Built-in schedule, built-in wi-fi, works with pentair intellicenter, pentair easytouch, pentair intellitouch vs Built-in schedule, optional wi-fi module, works with hayward omnix).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every in-ground pool pump; a clear win is highlighted. How we rank explains each one.
| Factor weight | Pentair IntelliFlo3 VSF 1.5 HP | Hayward TriStar VS 810 |
|---|---|---|
| Overall rating | 3.4/5 | 3.3/5 |
| Efficiency 35% | 55 WEF 9.4, 37% above the ENERGY STAR minimum for its size | 41 WEF 9.1, 30% above the ENERGY STAR minimum for its size |
| Value 25% | 28 $1,291 for 1.5 HP ($861 per HP) | 50 no current price (neutral score used) |
| Warranty 15% | 50 3-year warranty | 50 3-year warranty |
| Controls 15% | 100 Built-in schedule, built-in wi-fi, works with pentair intellicenter, pentair easytouch, pentair intellitouch | 85 Built-in schedule, optional wi-fi module, works with hayward omnix |
| Noise 10% | 50 55 dB(A) | 50 noise not published (neutral score used) |
Specifications
| Pentair IntelliFlo3 VSF 1.5 HP | Hayward TriStar VS 810 | |
|---|---|---|
| Efficiency ratings | ||
| Pump type | In-ground (self-priming) | In-ground (self-priming) |
| Motor | Variable speed | Variable speed |
| Rated horsepower (DOE) | 1.5 HP | 1.2 HP |
| Hydraulic horsepower (DOE) | 0.9 HP | 0.8 HP |
| Weighted energy factor (WEF) | 9.4 kgal/kWh | 9.1 kgal/kWh |
| ENERGY STAR minimum for its size | 6.8 kgal/kWh | 7 kgal/kWh |
| ENERGY STAR certified | Yes | Yes |
| Pump | ||
| Voltage | 115/230 V | 115/230 V |
| Speed range | 400 to 4,000 rpm | 600 to 3,450 rpm |
| Maximum flow | 115 gpm | 112 gpm |
| Pipe size | 2 in | 2 in |
| Sound level | 55 dB(A) | - |
| Size (W × D × H) | 24.9 × 11.7 × 12 in | 11.5 × 25.5 × 13.5 in |
| Weight | 48 lb | - |
| Controls | ||
| Built-in schedule | Yes | Yes |
| Freeze protection | Yes | Yes |
| Wi-Fi | Built in | Optional module |
| App | Pentair Pool | Hayward OmniX |
| Automation compatibility | Pentair IntelliCenter, Pentair EasyTouch, Pentair IntelliTouch | Hayward OmniX |
| Warranty and models | ||
| Warranty | 3 years | 3 years |
| Warranty terms | Pentair lists the IntelliFlo3 VSF and IntelliPro3 VSF at 3 years, parts and labor when professionally installed from a dealer, pool builder or service company. Bought online it is 1 year, parts only. | Sold only through pool pros: 3 years parts when sold by a Totally Hayward partner (sell sheet); the product page lists 3 years parts and 1 year labor. Exclusions and other terms at hayward.com/expert. |
| Also sold as | Sta-Rite IntelliPro3 VSF 1.5 HP (013065 / 013066 / 013067 / 013068) | - |
| Released | 2023-02 | 2024-12 |
