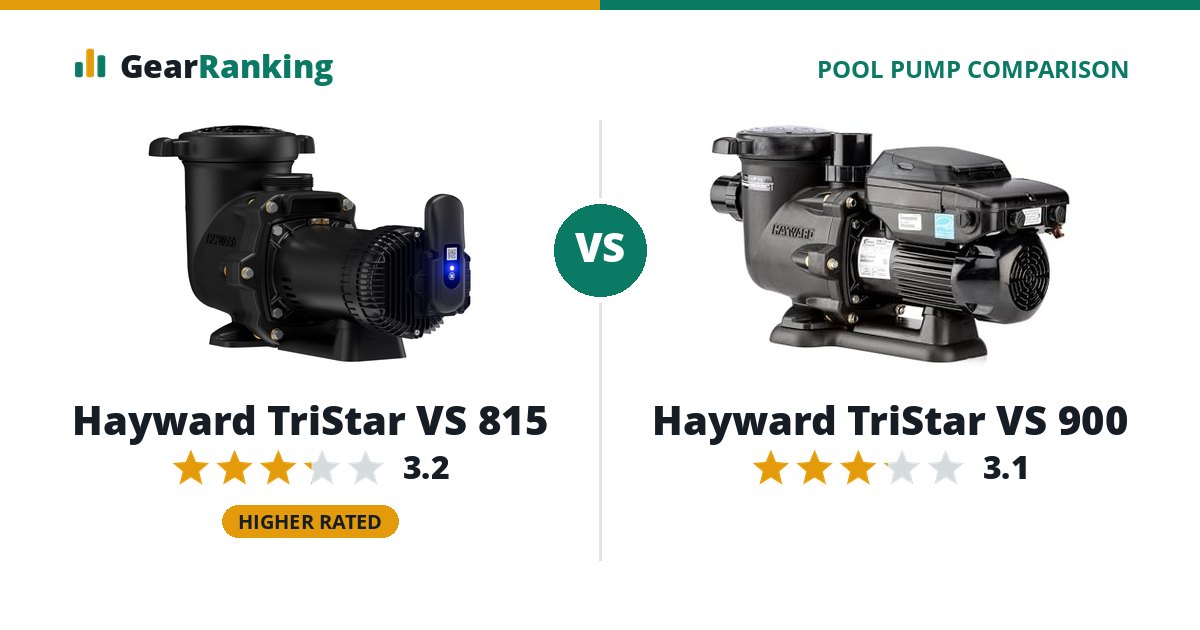

Hayward TriStar VS 815
#17 in In-GroundFull review
A mid-size TriStar for typical in-ground pools, best for owners who want phone schedules over Bluetooth without an automation system.
INYOPools $2,089.99$2,089.99
The Hayward TriStar VS 815 and the Hayward TriStar VS 900 are evenly matched, rated 3.2 and 3.1. The Hayward TriStar VS 815 costs $109.01 less ($2,089.99 vs $2,199).
Hayward TriStar VS 900
#19 in In-GroundFull review
A mid-size dual-voltage pump for typical in-ground pools, best for owners who want keypad schedules and a link to Omni, Pentair or Jandy automation.
Amazon $2,199$2,199
Prices were last checked October 27, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every in-ground pool pump; a clear win is highlighted. How we rank explains each one.
| Factor weight | Hayward TriStar VS 815 | Hayward TriStar VS 900 |
|---|---|---|
| Overall rating | 3.2/5 | 3.1/5 |
| Efficiency 35% | 57 WEF 8.5, 38% above the ENERGY STAR minimum for its size | 54 WEF 8.3, 37% above the ENERGY STAR minimum for its size |
| Value 25% | 12 $2,090 for 1.9 HP ($1,130 per HP) | 9 $2,199 for 1.9 HP ($1,189 per HP) |
| Warranty 15% | 50 3-year warranty | 50 3-year warranty |
| Controls 15% | 85 Built-in schedule, optional wi-fi module, works with hayward omnix | 85 Built-in schedule, optional wi-fi module, works with hayward omnilogic, hayward omnihub, hayward omnipl, hayward prologic, hayward aqualogic, hayward e-command 4, hayward oncommand, hayward omnix, pentair automation (universal comms), jandy automation (universal comms) |
| Noise 10% | 50 noise not published (neutral score used) | 50 noise not published (neutral score used) |
Specifications
| Hayward TriStar VS 815 | Hayward TriStar VS 900 | |
|---|---|---|
| Efficiency ratings | ||
| Pump type | In-ground (self-priming) | In-ground (self-priming) |
| Motor | Variable speed | Variable speed |
| Rated horsepower (DOE) | 1.9 HP | 1.9 HP |
| Hydraulic horsepower (DOE) | 1.2 HP | 1.2 HP |
| Weighted energy factor (WEF) | 8.5 kgal/kWh | 8.3 kgal/kWh |
| ENERGY STAR minimum for its size | 6.1 kgal/kWh | 6.1 kgal/kWh |
| ENERGY STAR certified | Yes | Yes |
| Pump | ||
| Voltage | 115/230 V | 115/230 V |
| Speed range | 600 to 3,450 rpm | 600 to 3,450 rpm |
| Maximum flow | 139 gpm | 140 gpm |
| Pipe size | 2 in | 2 in |
| Size (W × D × H) | 11.5 × 25.5 × 13.5 in | 11.5 × 25.9 × 13.5 in |
| Controls | ||
| Built-in schedule | Yes | Yes |
| Freeze protection | Yes | Yes |
| Wi-Fi | Optional module | Optional module |
| App | Hayward OmniX | Hayward OmniX |
| Automation compatibility | Hayward OmniX | Hayward OmniLogic, Hayward OmniHub, Hayward OmniPL, Hayward ProLogic, Hayward AquaLogic, Hayward E-Command 4, Hayward OnCommand, Hayward OmniX, Pentair automation (Universal Comms), Jandy automation (Universal Comms) |
| Warranty and models | ||
| Warranty | 3 years | 3 years |
| Warranty terms | Sold only through pool pros: 3 years parts when sold by a Totally Hayward partner (sell sheet); the product page lists 3 years parts and 1 year labor. Exclusions and other terms at hayward.com/expert. | Expert Line pump sold only through pool pros: 3 years parts and labor when sold by a Totally Hayward partner (sell sheet); the product page lists 3 years parts and 1 year labor. Exclusions and other terms at hayward.com/expert; Hayward does not publish separate terms for online buyers. |
| Also sold as | - | EF200VS |
| Released | 2024-12 | 2020-08 |
