CircuPool SmartFlo AF 1.3H
#23 in In-GroundFull review
A small, very efficient smart pump for modest pools, best for owners replacing a Hayward SuperFlo-size pump who want app control without a hub.
Amazon $1,275$1,275
3.0/5
The bigger MaxFlo VS 400, for mid-size pools that need more flow in a compact body, controlled from the OmniX app.
- 2.2 HPRated power
- 8.6WEF
- 22% aboveAbove ENERGY STAR minimum
- 115/230 VVoltage
- 120 gpmMax flow
- 3 yearsWarranty
Check price at INYOPools$1,834.99
Price checked October 27, 2026. As an Amazon Associate we earn from qualifying purchases.
Pros
- Cheapest of Hayward’s OmniX pumps
- Runs on 115 or 230 V, so it swaps in for most old pumps
- Schedules and speeds from a phone over Bluetooth with no automation system to buy
Cons
- No keypad: schedules must be set in the OmniX app
- Doesn’t connect to Pentair or Jandy automation
- Not ENERGY STAR certified, so it may not qualify for utility rebates
The Hayward MaxFlo VS 400 family
Every Hayward MaxFlo VS 400 model we rank, smallest first. Ratings compare each against its own pool type.
| Model | Rated power | Rating | Price |
|---|---|---|---|
| Hayward MaxFlo VS 415 | 1.6 HP | 2.8/5 | $1,681.99 |

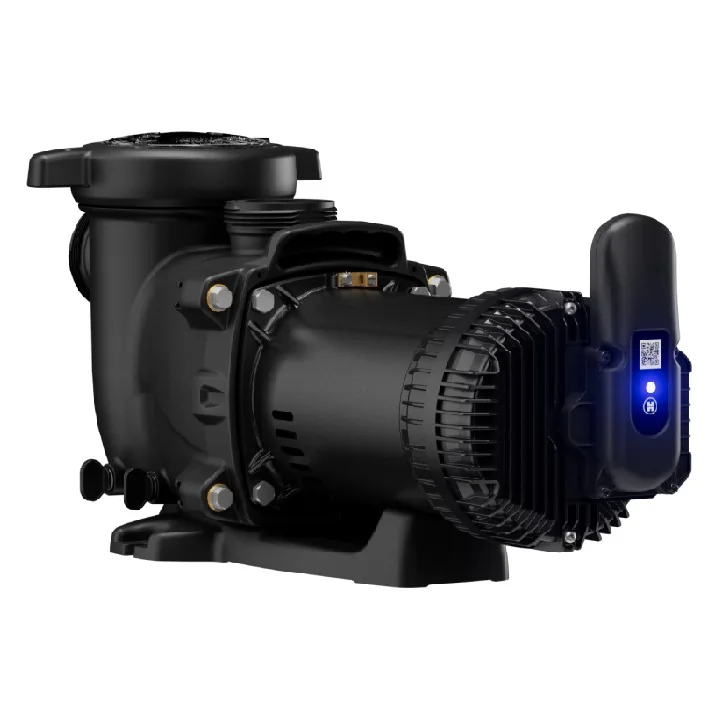

| Hayward MaxFlo VS 420 (this one) | 2.2 HP | 3.0/5 | $1,834.99 |
How it scores
The rating comes from 5 measured or published factors, each scored 0-100 against fixed reference points for its pool type. How we rank explains each one.
Specifications
| Model number | VSP23420 / W3VSP23420 |
|---|---|
| Efficiency ratings | |
| Pump type | In-ground (self-priming) |
| Motor | Variable speed |
| Rated horsepower (DOE) | 2.2 HP |
| Hydraulic horsepower (DOE) | 0.8 HP |
| Weighted energy factor (WEF) | 8.6 kgal/kWh |
| ENERGY STAR minimum for its size | 7 kgal/kWh |
| ENERGY STAR certified | No |
| Pump | |
| Voltage | 115/230 V |
| Speed range | 600 to 3,450 rpm |
| Maximum flow | 120 gpm |
| Pipe size | 2 in |
| Size (W × D × H) | 9.8 × 25.1 × 11.1 in |
| Controls | |
| Built-in schedule | Yes |
| Freeze protection | Yes |
| Wi-Fi | Optional module |
| App | Hayward OmniX |
| Automation compatibility | Hayward OmniX |
| Warranty and models | |
| Warranty | 3 years |
| Warranty terms | Sold only through pool pros: 3 years parts when sold by a Totally Hayward partner (sell sheet); the product page lists 3 years parts and 1 year labor. Exclusions and other terms at hayward.com/expert. |
| Released | 2025 |
Alternatives in this pool type
Hayward MaxFlo VS 500
#24 in In-GroundFull review
An efficient small pump for modest in-ground pools with 1.5 in plumbing, best as a replacement for an old MaxFlo.
INYOPools $1,749$1,749
Hayward Super Pump VS 700
#26 in In-GroundFull review
A compact dual-voltage replacement for an old Hayward Super Pump on a typical in-ground pool, with keypad schedules and wide automation support.
INYOPools $1,749$1,749
Compare
Compare the Hayward MaxFlo VS 420 with any other pool pump →
More from Hayward: every Hayward product ranked.
