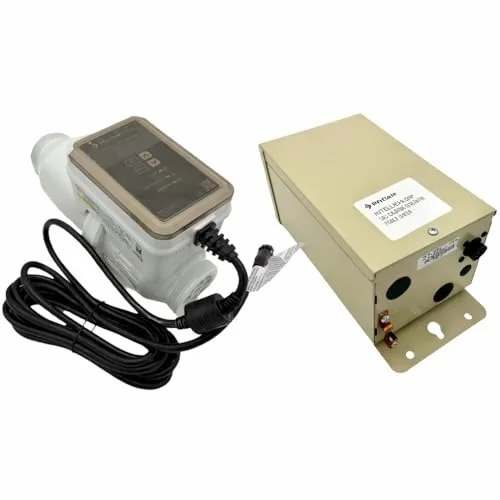

Pentair’s most common size, for pools up to 40,000 gallons, and the natural upgrade for an IC40 owner who keeps the power center.
- 40,000 galRated pool size
- 1.4 lb/dayChlorine output
- $1,546Replacement cell
- 3,000 to 4,500 ppm (ideal 3,600)Salt level
- 3 yearsWarranty
Check price at Amazon$2,299
Price checked October 27, 2026. As an Amazon Associate we earn from qualifying purchases.
Pros
- Drop-in replacement for an IC40 cell on an existing IntelliChlor power center
- Plus warranty: 3 years or 10,000 hours when installed by a pro
- Shows the salt level in ppm and shuts off in cold water on its own
Cons
- Needs the PC100 power center, sold separately (about $450)
- Bought online, Pentair’s warranty shrinks to a short parts-only cover
- Pentair app only through Pentair automation; no Wi-Fi on its own
The Pentair IntelliChlor Plus family
Every Pentair IntelliChlor Plus model we rank, smallest first. Ratings compare each against its own pool type.
| Model | Rated pool size | Rating | Price |
|---|---|---|---|
| Pentair IntelliChlor Plus30 | 30,000 gal | 3.3/5 | $1,675.50 |
| Pentair IntelliChlor Plus40 (this one) | 40,000 gal | 3.2/5 | $2,299 |
| Pentair IntelliChlor Plus60 | 60,000 gal | 3.2/5 | $2,951.50 |
How it scores
The rating comes from 5 measured or published factors, each scored 0-100 against fixed reference points for its pool type. How we rank explains each one.
Specifications
| Model number | Plus40 cell 523735 / 523735-EC + PC100 power center 520556 |
|---|---|
| Output | |
| Pool type | In-ground |
| Rated pool size (maker) | 40,000 gal |
| Chlorine output | 1.4 lb/day |
| Salt level | 3,000 to 4,500 ppm (ideal 3,600) |
| NSF/ANSI 50 certified | Yes |
| Electrical listing (UL/ETL) | Yes |
| Cell | |
| Replacement cell | 523735 |
| Replacement cell price | $1,546 |
| Self-cleaning | Yes |
| Plumbing size | 2 in |
| Controls | |
| Salt level readout | Yes |
| Flow sensing | Flow switch |
| Cold-water shutoff | Yes |
| Boost mode | Yes |
| Wi-Fi | No |
| App | Pentair Pool (via Pentair automation) |
| Automation compatibility | Pentair IntelliCenter, Pentair IntelliConnect, Pentair EasyTouch, Pentair IntelliTouch, Pentair SunTouch |
| Voltage | 115/230 V |
| Warranty and models | |
| Warranty | 3 years |
| Warranty terms | TradeGrade product: 3 years or 10,000 operating hours, whichever comes first, when bought from and installed by a pool professional (Plus cells). Pentair's warranty page gives TradeGrade products bought online a much shorter limited warranty (60 days on the product page; 1 year, parts only, on the warranty page), so DIY online buyers get far less cover. |
| Released | 2025 |
