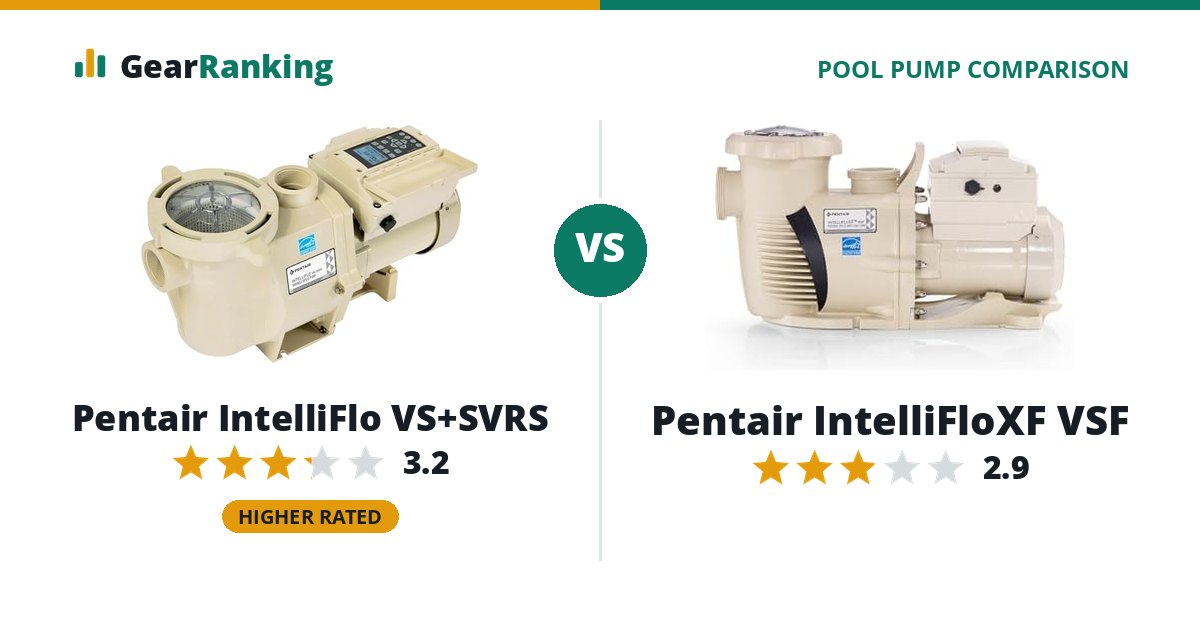

The Pentair IntelliFlo VS+SVRS is the better pool pump overall, rated 3.2 to 2.9. The Pentair IntelliFlo VS+SVRS leads on efficiency. The Pentair IntelliFloXF VSF wins on warranty. The Pentair IntelliFloXF VSF costs $234.54 less ($1,999.71 vs $2,234.25).
For pools that need a pump with built-in safety vacuum release (SVRS), such as single-drain pools where code calls for one; otherwise the IntelliFlo3 VSF is the more efficient choice.
Amazon $2,323.61 Leslie's $2,234.25Only for large or feature-heavy pools on 2.5 to 3 in plumbing that need more flow than a 3 HP IntelliFlo3 can give.
Amazon $1,999.71Prices were last checked October 27, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Each factor is scored 0-100 against the same fixed reference points for every large pools pool pump; a clear win is highlighted. How we rank explains each one.
| Factor weight | Pentair IntelliFlo VS+SVRS | Pentair IntelliFloXF VSF |
|---|---|---|
| Overall rating | 3.2/5 | 2.9/5 |
| Efficiency 35% | 49 WEF 6.9, 34% above the ENERGY STAR minimum for its size | 9 WEF 5.6, 15% above the ENERGY STAR minimum for its size |
| Value 25% | 53 $2,234 for 4 HP ($566 per HP) | 59 $2,000 for 4 HP ($506 per HP) |
| Warranty 15% | 25 2-year warranty | 50 3-year warranty |
| Controls 15% | 65 Built-in schedule, works with pentair intellitouch, pentair easytouch, pentair suntouch, pentair intellicomm | 65 Built-in schedule, works with pentair easytouch, pentair intellitouch, pentair intellicomm |
| Noise 10% | 50 noise not published (neutral score used) | 50 noise not published (neutral score used) |
| Pentair IntelliFlo VS+SVRS | Pentair IntelliFloXF VSF | |
|---|---|---|
| Efficiency ratings | ||
| Pump type | In-ground (self-priming) | In-ground (self-priming) |
| Motor | Variable speed | Variable speed |
| Rated horsepower (DOE) | 4 HP | 4 HP |
| Hydraulic horsepower (DOE) | 1.9 HP | 2.1 HP |
| Weighted energy factor (WEF) | 6.9 kgal/kWh | 5.6 kgal/kWh |
| ENERGY STAR minimum for its size | 5.1 kgal/kWh | 4.9 kgal/kWh |
| ENERGY STAR certified | Yes | No |
| Pump | ||
| Voltage | 230 V | 230 V |
| Speed range | 1,100 to 3,450 rpm | 450 to 3,450 rpm |
| Maximum flow | 174 gpm | 220 gpm |
| Pipe size | 2 in | 2.5 in |
| Size (W × D × H) | 23.4 × 10.8 × 13.1 in | 24.9 × 11.7 × 14.1 in |
| Controls | ||
| Built-in schedule | Yes | Yes |
| Freeze protection | Yes | Yes |
| Wi-Fi | No | No |
| Automation compatibility | Pentair IntelliTouch, Pentair EasyTouch, Pentair SunTouch, Pentair IntelliComm | Pentair EasyTouch, Pentair IntelliTouch, Pentair IntelliComm |
| Warranty and models | ||
| Warranty | 2 years | 3 years |
| Warranty terms | Pentair lists IntelliFlo SVRS pumps at 2 years, parts and labor when professionally installed from a dealer, pool builder or service company; bought online (EC-011057) it is 2 years, parts only. Not eligible for the 3-year bundle. | Pentair lists the IntelliFlo VSF and IntelliFloXF VSF at 3 years, parts and labor when professionally installed from a dealer, pool builder or service company. Bought online it is 1 year, parts only. |
| Also sold as | Sta-Rite IntelliPro VS+SVRS (013002) | Sta-Rite IntelliProXF VSF (023056) |
