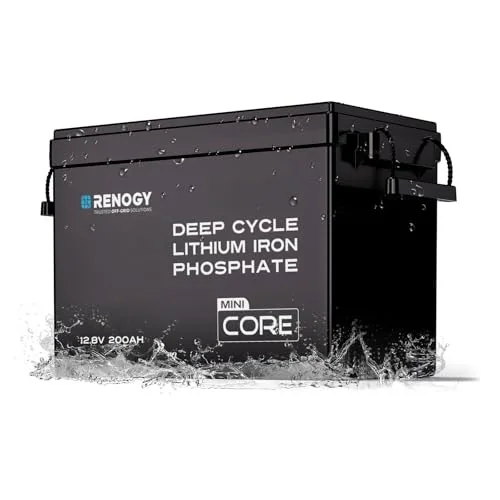

Renogy 12V 200Ah Core Mini

Last updated: October 22, 2026

Renogy 12V 200Ah Core Mini
3.6/5#4 of 8 in large 12V batteries
3.6

For RV and van builds that want a large, low-cost bank in one box from a known brand. Cold-climate users should look at a heated battery instead.

  • 200 Ah (2,560 Wh)Capacity
  • 200 AContinuous output
  • Charge cutoff onlyCold charging
  • NoBluetooth
  • 5 yearsWarranty
  • $0.23Price / Wh
Check price at Amazon$593.99Check price at Amazon$653.99

Price checked October 22, 2026. As an Amazon Associate we earn from qualifying purchases.

Pros
  • 200 Ah in one case replaces two 100Ah batteries and their cabling
  • 200 A continuous runs a 2,000 W inverter from a single battery
  • IP65 case handles splashes and dust
  • Protects itself by refusing to charge below freezing
Cons
  • No Bluetooth, so you need a separate shunt to see state of charge
  • Won’t charge below freezing without a heated space
  • At over 42 lb it is a heavy one-person lift

How it scores

The rating comes from 6 measured or published factors, each scored 0-100 against fixed reference points for its size. How we rank explains each one.

Specifications

Model numberRBT12200LFP-M
Capacity
Rated capacity200 Ah (2,560 Wh)
Nominal voltage12.8 V
ChemistryLiFePO4
Rated cycle life5,000 at 80% depth
Price per Wh$0.23
BMS
Continuous discharge200 A
Peak discharge380 A
Low-temperature chargingCharge cutoff only
Bluetooth monitoringNo
Build
Dimensions15.12 x 7.64 x 9.96 in
Weight42.4 lb
Water resistanceIP65
Warranty5 years
