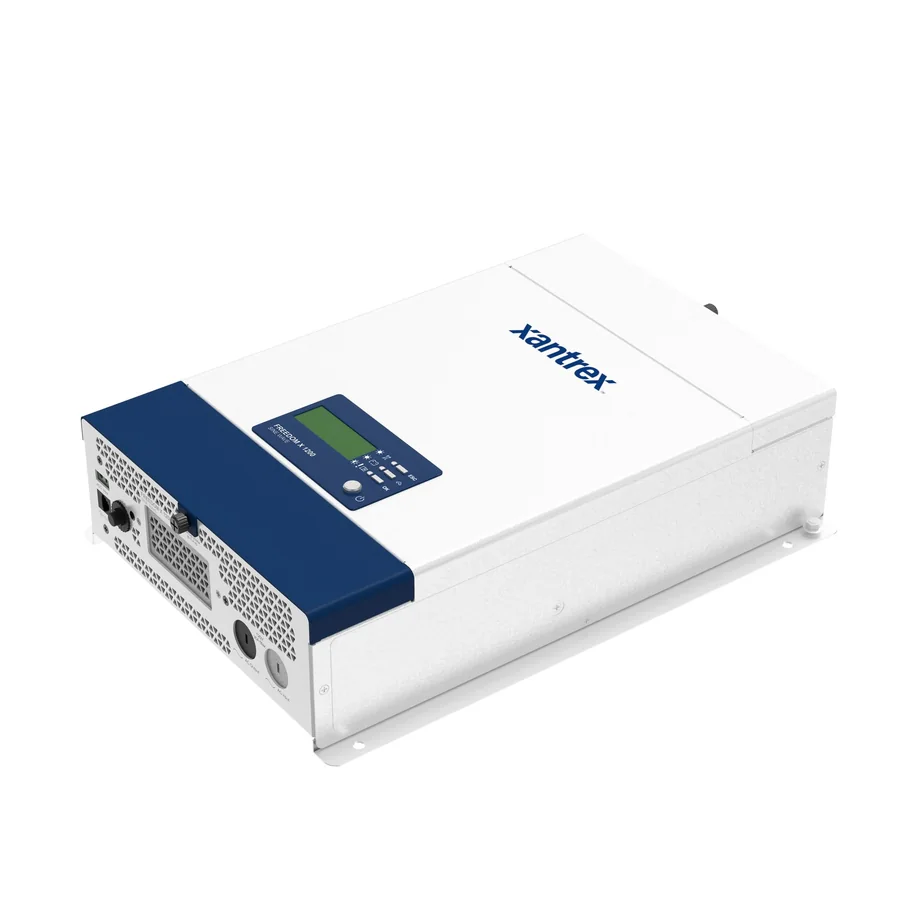

Xantrex Freedom X 1200

Last updated: October 24, 2026

Xantrex Freedom X 1200
3.4/5#16 of 38 in 1,100 to 2,000 W 12V inverters
3.4

A listed 1200 W hardwire inverter with a transfer switch, designed for truck sleeper cabs and work vehicles. Good value if you want a permanent install with shore-power pass-through.

  • 1,200 WContinuous
  • 2,400 WSurge
  • 0.8 AIdle draw
  • YesUL listed
  • 2 yearsWarranty
Check price at Amazon$432.73

Price checked October 24, 2026. As an Amazon Associate we earn from qualifying purchases.

Pros
  • Built-in 30 A transfer switch hands loads to shore power automatically
  • Power-save mode drops idle draw under 0.6 A
  • ETL listed to UL 458 with a marine supplement
  • Doubles its output for 5 seconds to start motor loads
Cons
  • Built for truck sleeper cabs; no outlets, so it must be hardwired
  • Narrower 10.5-16.5 V input range than the Freedom X

The Xantrex Freedom X family

Every Xantrex Freedom X model we rank, smallest first. Ratings compare each against its own size.

ModelContinuousRatingPrice
Xantrex Freedom X 10001,000 W3.5/5$397.34
Xantrex Freedom X 1200 (this one)1,200 W3.4/5$432.73
Xantrex Freedom X 20002,000 W3.2/5$763.36
Xantrex Freedom X 30003,000 W3.2/5$1,045.72

How it scores

The rating comes from 6 measured or published factors, each scored 0-100 against fixed reference points for its size. How we rank explains each one.

Specifications

Model number806-1212
Output
TypePure sine wave inverter
Continuous power1,200 W
Surge power2,400 W for 5 s
DC input range10.5 to 16.5 V
Idle draw0.8 A (10 W)
Power-saving draw0.6 A
Peak efficiency91%
Connections
AC outlets0
GFCI outletsNo
Hardwire terminalYes
USB portsNone
Transfer switchYes
Parallel unitsNo
Control and build
RemoteOptional extra
AppNo
DisplayYes
Safety listingETL listed to CSA C22.2 No. 107.1 and UL 458 with marine supplement
Coolingload-controlled fan
Dimensions14.8 x 10.4 x 3.5 in (376 x 263 x 91 mm)
Weight10.4 lb
Warranty2 years
