A.O. Smith Voltex AL 80 Gal
#2 in 80 GallonFull review
A solid 240 V heater with leak protection included, sold at Lowe’s as the Signature 900 line.
Lowe's $2,798$2,798

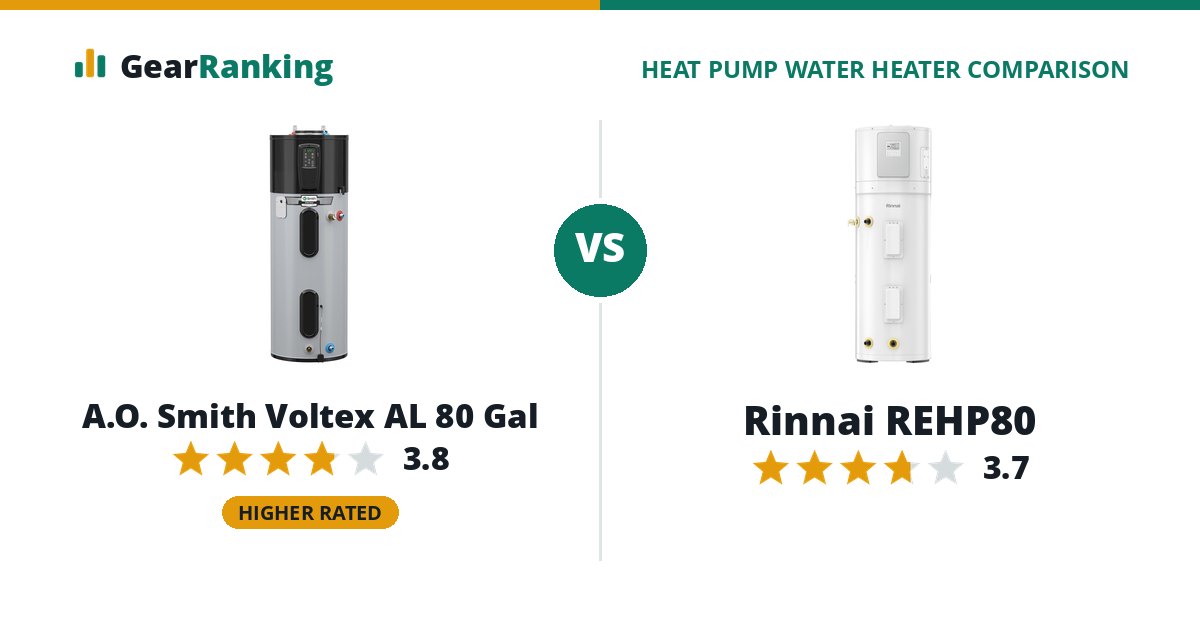

The A.O. Smith Voltex AL 80 Gal is the better heat pump water heater overall, rated 3.8 to 3.7. The A.O. Smith Voltex AL 80 Gal leads on hot water and noise. The Rinnai REHP80 wins on efficiency. The Rinnai REHP80 costs $99 less ($2,699 vs $2,798).
Rinnai REHP80
#7 in 80 GallonFull review
A Midea-built heater with Rinnai’s support network and one of the few listings on Amazon. Check the seller is a Rinnai-authorized dealer before buying.
Amazon $2,699$2,699
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the A.O. Smith Voltex AL 80 Gal for hot water (95 gallons in the first hour vs 91 gallons in the first hour) and noise (45 dB(A) vs 49 dB(A)).
- Choose the Rinnai REHP80 for efficiency (4.00 UEF vs 3.88 UEF).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 80 gallon heat pump water heater; a clear win is highlighted. How we rank explains each one.
| Factor weight | A.O. Smith Voltex AL 80 Gal | Rinnai REHP80 |
|---|---|---|
| Overall rating | 3.8/5 | 3.7/5 |
| Efficiency 35% | 63 3.88 UEF | 71 4.00 UEF |
| Hot water 20% | 80 95 gallons in the first hour | 64 91 gallons in the first hour |
| Warranty 20% | 75 10-year tank, 10-year parts, 1-year labor | 75 10-year tank, 10-year parts, 1-year labor |
| Cold rooms 15% | 32 heat pump runs down to 37 °F room air | 30 heat pump runs down to 37.4 °F room air |
| Noise 10% | 69 45 dB(A) | 44 49 dB(A) |
Specifications
| A.O. Smith Voltex AL 80 Gal | Rinnai REHP80 | |
|---|---|---|
| Ratings (ENERGY STAR) | ||
| Size (nominal) | 80 gal | 80 gal |
| Tank volume (measured) | 82 gal | 75 gal |
| Uniform Energy Factor | 3.88 | 4.00 |
| First-hour rating | 95 gal | 91 gal |
| Draw pattern | High | High |
| Yearly energy use | 1,279 kWh | 1,225 kWh |
| Heat pump cut-off (low) | 37 °F | 37.4 °F |
| Sound level | 45 dB(A) | 49 dB(A) |
| ENERGY STAR ID | 2408847 | 3531242 |
| Installation | ||
| Power | 240 V | 240 V |
| Circuit | 30 A, 208/240 V | 30 A, 208/240 V |
| Backup element | 4,500 W | 4,500 W |
| Operating air range | 37 to 120 °F | 37 to 107 °F |
| Minimum room size | 450 cu ft | 700 cu ft |
| Size | 69 in tall, 27 in across | 74.2 in tall, 25.7 in across |
| Weight | 302 lb | 290 lb |
| Refrigerant | R-134a | R-134a |
| Features | ||
| Wi-Fi | Built in | No |
| App | A. O. Smith (iCOMM) | - |
| Demand response port (CTA-2045) | Yes | - |
| Leak detection | Yes | No |
| Modes | Hybrid, Heat Pump, Electric, Vacation | Economy, Heat Pump, Hybrid, E-Heater, Vacation |
| Warranty and models | ||
| Warranty | 10 yr tank, 10 yr parts, 1 yr labor | 10 yr tank, 10 yr parts, 1 yr labor |
| Also sold as | American HPS10280H045DV, Lochinvar HPSA080KD, Reliance 10-80-DHPTS, State HPSX-80-DHPT | - |
| Released | 2022-06 | 2024-08 |
