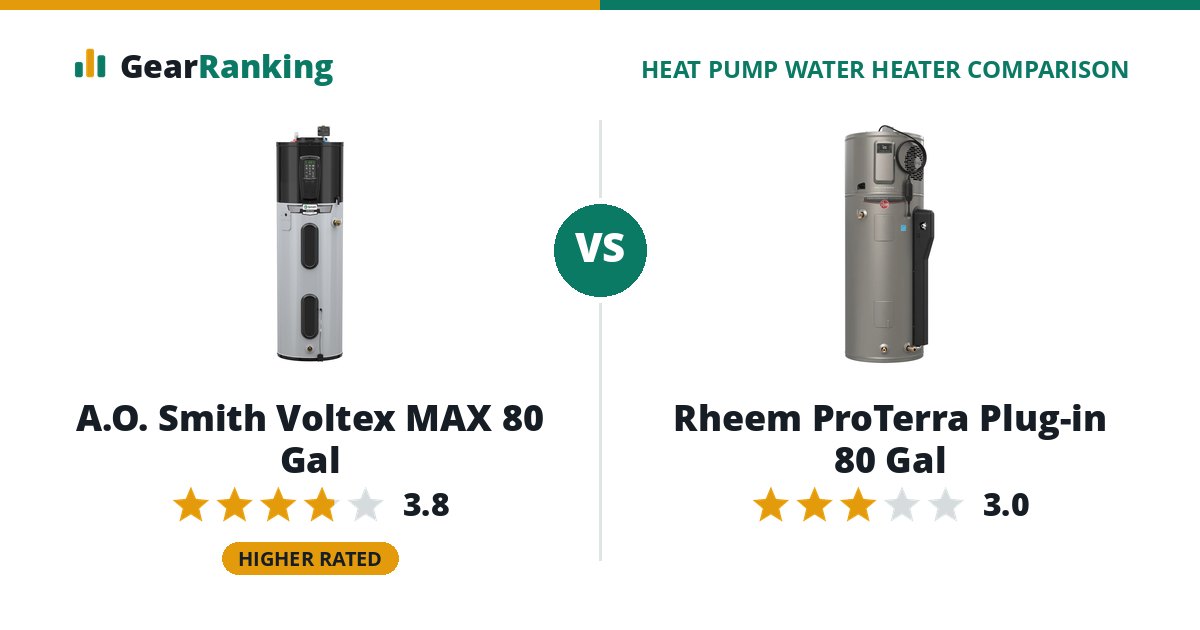

A.O. Smith Voltex MAX 80 Gal
#3 in 80 GallonFull review
A solid 240 V heater with leak protection included, sold at Lowe’s as the Signature 900 line.
Lowe's $2,999$2,999
The A.O. Smith Voltex MAX 80 Gal is the better heat pump water heater overall, rated 3.8 to 3.0. The A.O. Smith Voltex MAX 80 Gal leads on efficiency and hot water. The Rheem ProTerra Plug-in 80 Gal costs $201 less ($2,798 vs $2,999).
Rheem ProTerra Plug-in 80 Gal
#15 in 80 GallonFull review
A plug-in for replacing a gas tank in a mild-climate garage or basement without new wiring. Buy a size up, since it has no element to fall back on.
Home Depot $2,798$2,798
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the A.O. Smith Voltex MAX 80 Gal for efficiency (3.88 UEF vs 3.46 UEF) and hot water (95 gallons in the first hour vs 84 gallons in the first hour).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 80 gallon heat pump water heater; a clear win is highlighted. How we rank explains each one.
| Factor weight | A.O. Smith Voltex MAX 80 Gal | Rheem ProTerra Plug-in 80 Gal |
|---|---|---|
| Overall rating | 3.8/5 | 3.0/5 |
| Efficiency 35% | 63 3.88 UEF | 33 3.46 UEF |
| Hot water 20% | 80 95 gallons in the first hour | 36 84 gallons in the first hour |
| Warranty 20% | 75 10-year tank, 10-year parts, 1-year labor | 75 10-year tank, 10-year parts, 1-year labor |
| Cold rooms 15% | 32 heat pump runs down to 37 °F room air | 32 heat pump runs down to 37 °F room air |
| Noise 10% | 69 45 dB(A) | 50 noise not published (neutral score used) |
Specifications
| A.O. Smith Voltex MAX 80 Gal | Rheem ProTerra Plug-in 80 Gal | |
|---|---|---|
| Ratings (ENERGY STAR) | ||
| Size (nominal) | 80 gal | 80 gal |
| Tank volume (measured) | 81 gal | 72 gal |
| Uniform Energy Factor | 3.88 | 3.46 |
| First-hour rating | 95 gal | 84 gal |
| Draw pattern | High | High |
| Yearly energy use | 1,279 kWh | 1,403 kWh |
| Heat pump cut-off (low) | 37 °F | 37 °F |
| Sound level | 45 dB(A) | - |
| ENERGY STAR ID | 3417562 | 3555356 |
| Installation | ||
| Power | 240 V | Plug-in 120 V |
| Circuit | 30 A, 208/240 V | Shared 15 A or 20 A circuit |
| Backup element | 4,500 W | None |
| Operating air range | 37 to 120 °F | 37 to 145 °F |
| Minimum room size | 450 cu ft | 700 cu ft |
| Size | 69 in tall, 27 in across | 74.2 in tall, 24.3 in across |
| Weight | 302 lb | 244 lb |
| Refrigerant | R-134a | R-134a |
| Features | ||
| Wi-Fi | Built in | Built in |
| App | A. O. Smith (iCOMM) | EcoNet |
| Demand response port (CTA-2045) | Yes | Yes |
| Leak detection | Yes | No |
| Modes | Hybrid, Heat Pump, Hot Water+ (3 levels), Guest, Electric, Vacation | Heat Pump, Vacation |
| Warranty and models | ||
| Warranty | 10 yr tank, 10 yr parts, 1 yr labor | 10 yr tank, 10 yr parts, 1 yr labor |
| Also sold as | American HPA10280H045DV, Lochinvar HPPA080KD, Reliance 10-80-DHPTA, State HPAX-80-DHPT | Friedrich PROH80 T0 FD120-M, Friedrich PROH80 T0 FD120-MSO, Rheem PROPH80 T0 RH120-M, Rheem PROPH80 T0 RH120-MSO, Richmond 10E80-HP120M, Richmond 10E80-HP120MS, Ruud PROUH80 T0 RU120-M, Ruud PROUH80 T0 RU120-MSO |
| Released | 2024-03 | 2024-03 |
