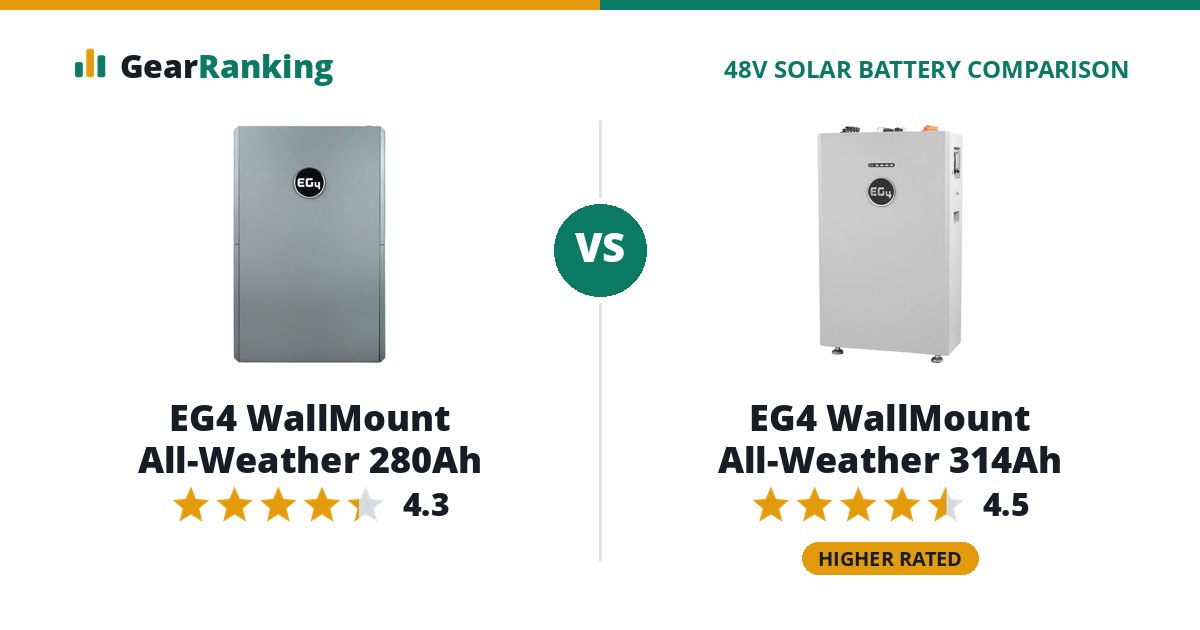

The EG4 WallMount All-Weather 314Ah is the better 48V solar battery overall, rated 4.5 to 4.3. The EG4 WallMount All-Weather 314Ah leads on features and output. The EG4 WallMount All-Weather 280Ah costs $710.01 less ($3,124.99 vs $3,835).
The outdoor pick in EG4’s wall lineup, for owners who want large heated 16 kWh blocks outside the house. It pairs best with EG4 inverters but talks to most major brands.
Signature Solar $3,835 Current Connected $3,835An outdoor-rated 14 kWh wall battery for EG4 inverter owners with no indoor space for storage. Compare it with the 314Ah All-Weather, which costs a little more per unit but less per kWh of extra capacity.
Signature Solar $3,124.99 Current Connected $3,124.99Prices were last checked October 24, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Each factor is scored 0-100 against the same fixed reference points for every wall and floor mount 48V solar battery; a clear win is highlighted. How we rank explains each one.
| Factor weight | EG4 WallMount All-Weather 314Ah | EG4 WallMount All-Weather 280Ah |
|---|---|---|
| Overall rating | 4.5/5 | 4.3/5 |
| Value 35% | 80 $240 per rated kWh | 85 $219 per rated kWh |
| Output 15% | 49 200 A continuous (about 10.2 kW) | 29 140 A continuous (about 7.2 kW) |
| Warranty 15% | 100 10-year warranty | 100 10-year warranty |
| Safety listing 15% | 100 UL 1973, UL 9540 listed | 100 UL 1973, UL 9540 listed |
| Cycle life 10% | 100 10,000 cycles at 80% depth, maker rating | 100 8,000 cycles at 80% depth, maker rating |
| Features 10% | 100 inverter communication, self-heating, app | 70 inverter communication, self-heating; no app |
| EG4 WallMount All-Weather 314Ah | EG4 WallMount All-Weather 280Ah | |
|---|---|---|
| Capacity | ||
| Case | Wall or floor mount | Wall or floor mount |
| Nominal voltage | 51.2 V | 51.2 V |
| Capacity | 314 Ah | 280 Ah |
| Energy | 16 kWh | 14.3 kWh |
| Usable energy | 12.9 kWh | - |
| Chemistry | LiFePO4 | LiFePO4 |
| Cycle life | 10,000 at 80% depth | 8,000 at 80% depth |
| Power | ||
| Continuous discharge | 200 A | 140 A |
| Peak discharge | - | 200 A |
| Max charge current | 157 A | 140 A |
| Modules in parallel | Up to 32 | Up to 64 |
| Safety and communication | ||
| UL 1973 | Yes | Yes |
| UL 9540A | Yes | Yes |
| UL 9540 | Yes | Yes |
| Communication | CAN, RS485 | CAN, RS485 |
| Works with inverters | EG4, Growatt, Deye, Megarevo, Luxpower, Victron, Solis, SMA, Schneider, Voltronic | EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, Deye |
| Self-heating | Yes | Yes |
| App | Yes | No |
| Build | ||
| Display | No | Yes |
| Built-in breaker | Yes | Yes |
| Enclosure | IP67 | IP65 |
| Dimensions | 34.6 x 21.7 x 9.3 in (880 x 550 x 235 mm) | 36.1 x 22.3 x 9.1 in (916 x 566 x 232 mm) |
| Weight | 309 lb | 308.6 lb |
| Warranty | 10 years | 10 years |
| Released | 2026-01 | 2023-08 |
