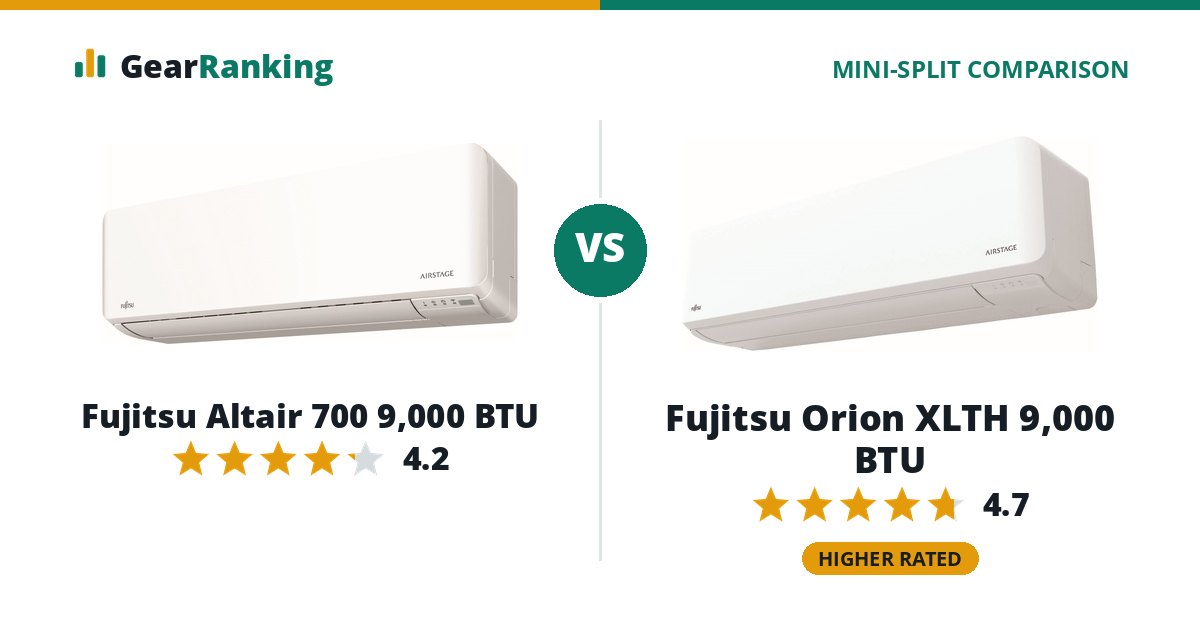

Fujitsu Orion XLTH 9,000 BTU
#5 in 9,000 BTUFull review
Fujitsu’s cold-climate line, with more than its rated heat at 5 °F and very high certified efficiency, for homes heating through a cold winter.
The Fujitsu Orion XLTH 9,000 BTU is the better mini-split overall, rated 4.7 to 4.2. The Fujitsu Orion XLTH 9,000 BTU leads on cold weather. The Fujitsu Altair 700 9,000 BTU wins on noise.
Fujitsu Altair 700 9,000 BTU
#12 in 9,000 BTUFull review
Very efficient and quiet, for mild winters: it stops heating below 5 °F, so a cold climate needs Fujitsu’s Orion XLTH instead.
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Fujitsu Orion XLTH 9,000 BTU for cold weather (keeps 128% of its heat at 5 °F, heats down to -15 °F vs keeps 86% of its heat at 5 °F, heats down to 5 °F).
- Choose the Fujitsu Altair 700 9,000 BTU for noise (indoor unit from 19 dB(A) vs indoor unit from 23 dB(A)).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 9,000 BTU mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | Fujitsu Orion XLTH 9,000 BTU | Fujitsu Altair 700 9,000 BTU |
|---|---|---|
| Overall rating | 4.7/5 | 4.2/5 |
| Cold weather 40% | 90 keeps 128% of its heat at 5 °F, heats down to -15 °F | 43 keeps 86% of its heat at 5 °F, heats down to 5 °F |
| Efficiency 30% | 95 13.3 HSPF2, 33.1 SEER2, COP 2.26 at 5 °F | 97 12.6 HSPF2, 30 SEER2, COP 2.32 at 5 °F |
| Warranty 20% | 100 10-year compressor, 10-year parts | 100 10-year compressor, 10-year parts |
| Noise 10% | 81 indoor unit from 23 dB(A) | 100 indoor unit from 19 dB(A) |
Specifications
| Fujitsu Orion XLTH 9,000 BTU | Fujitsu Altair 700 9,000 BTU | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 9,000 BTU | 9,000 BTU |
| Cooling at 95 °F | 9,000 Btu/h | 9,000 Btu/h |
| Heating at 47 °F | 12,000 Btu/h | 12,000 Btu/h |
| Heating at 17 °F (max) | 17,500 Btu/h | 12,600 Btu/h |
| Heating at 5 °F (max) | 15,400 Btu/h | 10,300 Btu/h |
| Heat kept at 5 °F | 128% | 86% |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 13.3 | 12.6 |
| SEER2 | 33.1 | 30 |
| EER2 | 18.8 | 16.4 |
| COP at 5 °F | 2.26 | 2.32 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 214888800 | 214390707 |
| Operating range | ||
| Heats down to | -15 °F | 5 °F |
| Cooling range | 14 to 122 °F | 14 to 122 °F |
| Installation | ||
| Installed by | Professional (sold through installers) | Professional (sold through installers) |
| Line set connection | Flare fittings (vacuum pump needed) | Flare fittings (vacuum pump needed) |
| Line set | up to 82 ft | up to 66 ft |
| Voltage | 230 V | 230 V |
| Refrigerant | R-32 | R-32 |
| Indoor unit | ASUH09KZAS | ASUH09KMAS |
| Outdoor unit | AOUH09KZAH1 | AOUH09KMAS1 |
| Build | ||
| Indoor noise | 23–44 dB(A) | 19–42 dB(A) |
| Outdoor noise | 46 dB(A) | 44 dB(A) |
| Wi-Fi | Built in | Built in |
| Weight | indoor 28 lb / outdoor 86 lb | indoor 22 lb / outdoor 71 lb |
| Warranty | 10 yr compressor, 10 yr parts | 10 yr compressor, 10 yr parts |
| Warranty with DIY install | No, a licensed installer is required | No, a licensed installer is required |
