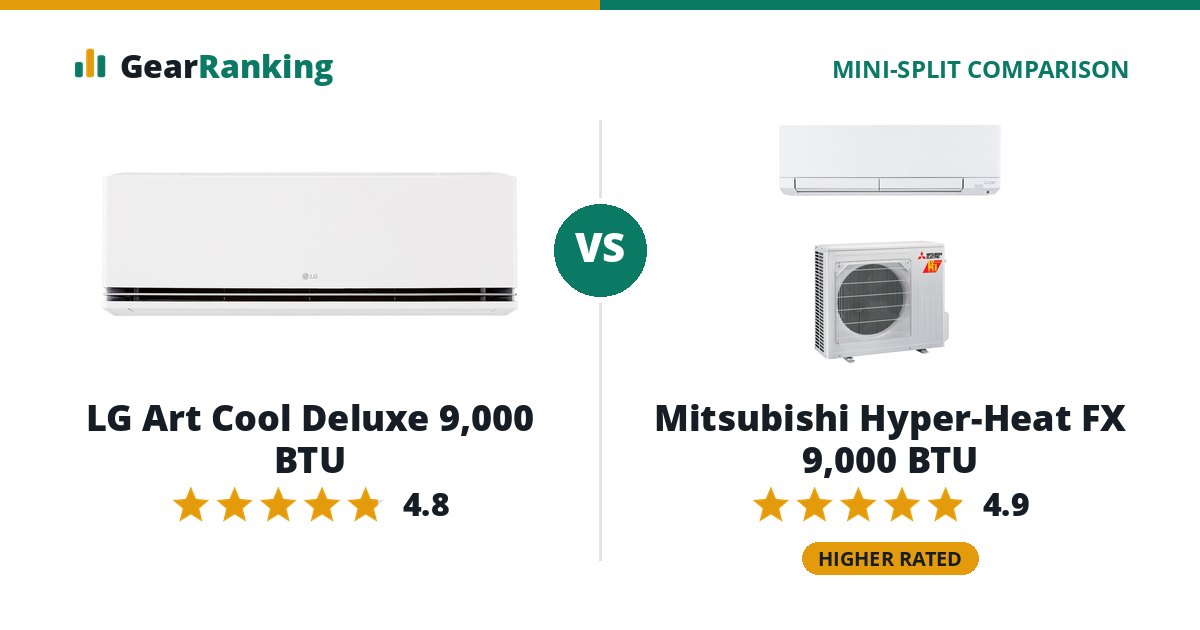

Mitsubishi Hyper-Heat FX 9,000 BTU
#2 in 9,000 BTUFull review
Mitsubishi’s flagship cold-climate system: it makes more than its rated heat at 5 °F and keeps heating to −22 °F. For a home that relies on it as the main heat through a cold winter.
The Mitsubishi Hyper-Heat FX 9,000 BTU is the better mini-split overall, rated 4.9 to 4.8.
LG Art Cool Deluxe 9,000 BTU
#3 in 9,000 BTUFull review
Heats down to −31 °F, the lowest limit here, and makes more than its rated heat at 5 °F. A strong pick for a very cold climate.
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 9,000 BTU mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | Mitsubishi Hyper-Heat FX 9,000 BTU | LG Art Cool Deluxe 9,000 BTU |
|---|---|---|
| Overall rating | 4.9/5 | 4.8/5 |
| Cold weather 40% | 100 keeps 122% of its heat at 5 °F, heats down to -22 °F | 100 keeps 109% of its heat at 5 °F, heats down to -31 °F |
| Efficiency 30% | 93 13.3 HSPF2, 33.1 SEER2, COP 2.20 at 5 °F | 87 13.5 HSPF2, 27 SEER2, COP 2.04 at 5 °F |
| Warranty 20% | 100 10-year compressor, 10-year parts | 100 10-year compressor, 10-year parts |
| Noise 10% | 95 indoor unit from 20 dB(A) | 90 indoor unit from 21 dB(A) |
Specifications
| Mitsubishi Hyper-Heat FX 9,000 BTU | LG Art Cool Deluxe 9,000 BTU | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 9,000 BTU | 9,000 BTU |
| Cooling at 95 °F | 9,000 Btu/h | 9,000 Btu/h |
| Heating at 47 °F | 12,000 Btu/h | 11,000 Btu/h |
| Heating at 17 °F (max) | 16,300 Btu/h | 13,730 Btu/h |
| Heating at 5 °F (max) | 14,700 Btu/h | 12,000 Btu/h |
| Heat kept at 5 °F | 122% | 109% |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 13.3 | 13.5 |
| SEER2 | 33.1 | 27 |
| EER2 | 18.4 | 15.8 |
| COP at 5 °F | 2.20 | 2.04 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 215611125 | 216368959 |
| Operating range | ||
| Heats down to | -22 °F | -31 °F |
| Cooling range | 14 to 115 °F | 14 to 118 °F |
| Installation | ||
| Installed by | Professional (sold through installers) | Professional (sold through installers) |
| Line set connection | Flare fittings (vacuum pump needed) | Flare fittings (vacuum pump needed) |
| Line set | up to 65 ft | up to 65.6 ft |
| Voltage | 230 V | 230 V |
| Refrigerant | R-454B | R-32 |
| Indoor unit | MSZ-FX09NL | KNSAL091A |
| Outdoor unit | MUZ-FX09NLHZ | KUSAL091A |
| Build | ||
| Indoor noise | 20–44 dB(A) | 21–42 dB(A) |
| Outdoor noise | 49 dB(A) | 48 dB(A) |
| Wi-Fi | Built in | Built in |
| Weight | indoor 31.4 lb / outdoor 89 lb | indoor 24.3 lb / outdoor 99.2 lb |
| Warranty | 10 yr compressor, 10 yr parts | 10 yr compressor, 10 yr parts |
| Warranty with DIY install | No, a licensed installer is required | No, a licensed installer is required |
| Released | 2025-02 | - |
