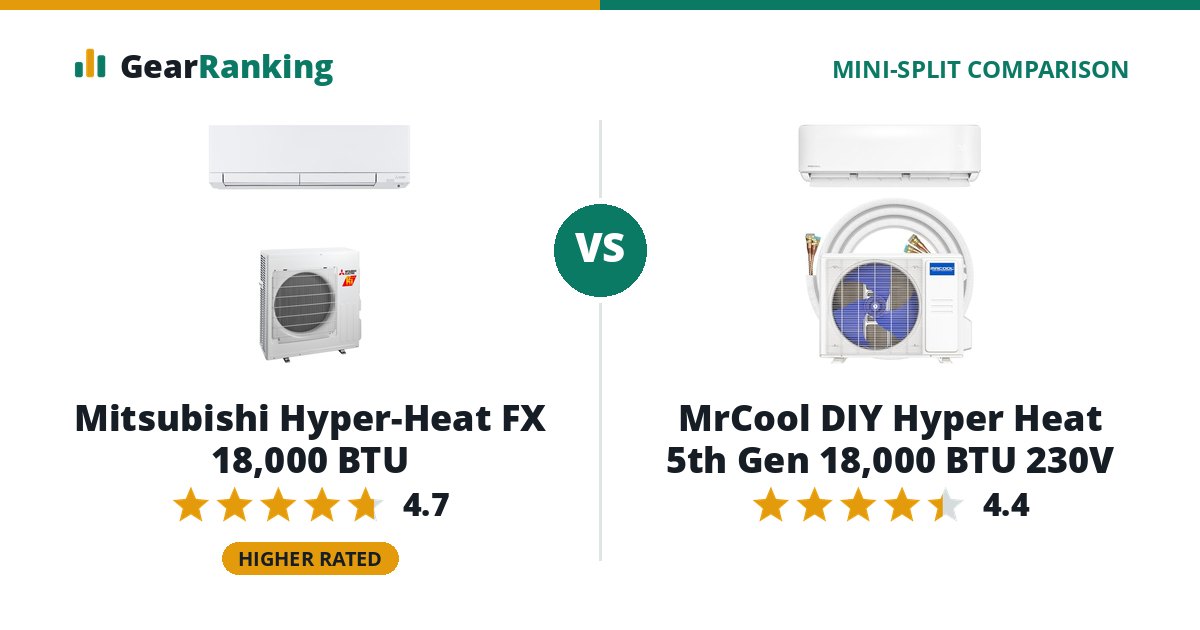

Mitsubishi Hyper-Heat FX 18,000 BTU
#2 in 18,000 BTUFull review
Mitsubishi’s flagship cold-climate system: it makes more than its rated heat at 5 °F and keeps heating to −22 °F. For a home that relies on it as the main heat through a cold winter.
The Mitsubishi Hyper-Heat FX 18,000 BTU is the better mini-split overall, rated 4.7 to 4.4. The Mitsubishi Hyper-Heat FX 18,000 BTU leads on warranty and efficiency. The MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V wins on noise.
MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V
#6 in 18,000 BTUFull review
For cold-climate homes where a quick-connect install matters more than price: it holds its full heat far colder than other quick-connect units. Flare-connect units match its cold-weather output for much less.
Amazon $3,173 MRCOOL DIY Direct $3,205$3,173
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Mitsubishi Hyper-Heat FX 18,000 BTU for warranty (10-year compressor, 10-year parts vs 7-year compressor, 5-year parts) and efficiency (11.1 HSPF2, 25.5 SEER2, COP 2.06 at 5 °F vs 11 HSPF2, 21.2 SEER2, COP 1.99 at 5 °F).
- Choose the MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V for noise (indoor unit from 20.5 dB(A) vs indoor unit from 27 dB(A)).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 18,000 BTU mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | Mitsubishi Hyper-Heat FX 18,000 BTU | MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V |
|---|---|---|
| Overall rating | 4.7/5 | 4.4/5 |
| Cold weather 40% | 100 keeps 139% of its heat at 5 °F, heats down to -22 °F | 100 keeps 100% of its heat at 5 °F, heats down to -22 °F |
| Efficiency 30% | 88 11.1 HSPF2, 25.5 SEER2, COP 2.06 at 5 °F | 73 11 HSPF2, 21.2 SEER2, COP 1.99 at 5 °F |
| Warranty 20% | 100 10-year compressor, 10-year parts | 64 7-year compressor, 5-year parts |
| Noise 10% | 62 indoor unit from 27 dB(A) | 93 indoor unit from 20.5 dB(A) |
Specifications
| Mitsubishi Hyper-Heat FX 18,000 BTU | MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 18,000 BTU | 18,000 BTU |
| Cooling at 95 °F | 17,200 Btu/h | 18,000 Btu/h |
| Heating at 47 °F | 17,000 Btu/h | 18,000 Btu/h |
| Heating at 17 °F (max) | 28,200 Btu/h | 20,300 Btu/h |
| Heating at 5 °F (max) | 23,600 Btu/h | 18,000 Btu/h |
| Heat kept at 5 °F | 139% | 100% |
| Price per 1,000 Btu/h at 5 °F | - | $176 |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 11.1 | 11 |
| SEER2 | 25.5 | 21.2 |
| EER2 | 13.1 | 12.5 |
| COP at 5 °F | 2.06 | 1.99 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 215611128 | 216032551 |
| Operating range | ||
| Heats down to | -22 °F | -22 °F |
| Cooling range | 14 to 115 °F | -22 to 122 °F |
| Installation | ||
| Installed by | Professional (sold through installers) | Sold for self-install (DIY) |
| Line set connection | Flare fittings (vacuum pump needed) | Quick-connect (no vacuum pump) |
| Line set | up to 100 ft | 25 ft included, up to 75 ft |
| Voltage | 230 V | 230 V |
| Refrigerant | R-454B | R-454B |
| Indoor unit | MSZ-FX18NL | DIY-18-HP-WMAH-230D25-O |
| Outdoor unit | MUZ-FX18NLHZ | DIYHH-18-HP-C-230D25-O |
| Build | ||
| Indoor noise | 27–45 dB(A) | 20.5–54.5 dB(A) |
| Outdoor noise | 52 dB(A) | 58 dB(A) |
| Wi-Fi | Built in | Built in |
| Room size (maker) | - | up to 800 sq ft |
| Weight | indoor 31.4 lb / outdoor 119 lb | indoor 35.5 lb / outdoor 99.9 lb |
| Warranty | 10 yr compressor, 10 yr parts | 7 yr compressor, 5 yr parts |
| Warranty with DIY install | No, a licensed installer is required | Yes |
| Released | 2025-02 | - |
