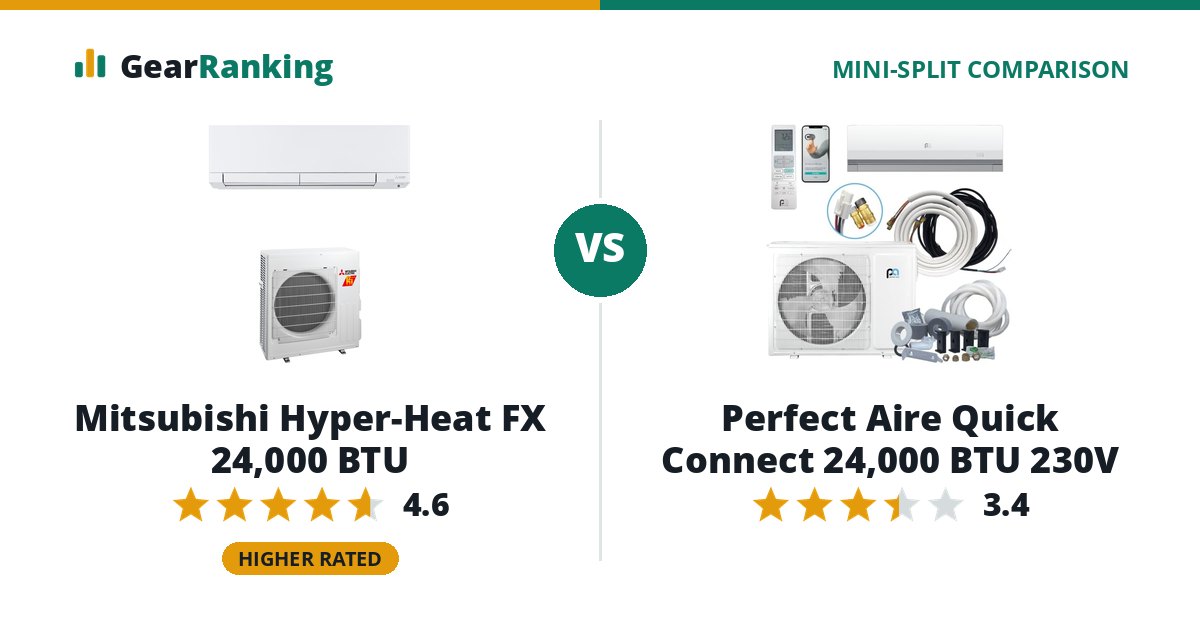

Mitsubishi Hyper-Heat FX 24,000 BTU
#1 in 24,000 BTUFull review
Mitsubishi’s flagship cold-climate system: it makes more than its rated heat at 5 °F and keeps heating to −22 °F. For a home that relies on it as the main heat through a cold winter.
The Mitsubishi Hyper-Heat FX 24,000 BTU is the better mini-split overall, rated 4.6 to 3.4. The Mitsubishi Hyper-Heat FX 24,000 BTU leads on cold weather, efficiency and warranty.
Perfect Aire Quick Connect 24,000 BTU 230V
#12 in 24,000 BTUFull review
A quick-connect unit with one of the longest warranties for a self-install, priced below MrCool’s DIY 5th Gen. Its −4 °F heating limit rules it out as the only heat in a very cold climate.
Amazon $2,025.45$2,025.45
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Mitsubishi Hyper-Heat FX 24,000 BTU for cold weather (keeps 134% of its heat at 5 °F, heats down to -22 °F vs keeps 82% of its heat at 5 °F, heats down to -4 °F), efficiency (10.5 HSPF2, 23.5 SEER2, COP 2.04 at 5 °F vs 9.5 HSPF2, 22.5 SEER2, COP 1.84 at 5 °F) and warranty (10-year compressor, 10-year parts vs 7-year compressor, 7-year parts).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 24,000 BTU mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | Mitsubishi Hyper-Heat FX 24,000 BTU | Perfect Aire Quick Connect 24,000 BTU 230V |
|---|---|---|
| Overall rating | 4.6/5 | 3.4/5 |
| Cold weather 40% | 100 keeps 134% of its heat at 5 °F, heats down to -22 °F | 52 keeps 82% of its heat at 5 °F, heats down to -4 °F |
| Efficiency 30% | 74 10.5 HSPF2, 23.5 SEER2, COP 2.04 at 5 °F | 47 9.5 HSPF2, 22.5 SEER2, COP 1.84 at 5 °F |
| Warranty 20% | 100 10-year compressor, 10-year parts | 78 7-year compressor, 7-year parts |
| Noise 10% | 62 indoor unit from 27 dB(A) | 50 indoor noise not published (neutral score used) |
Specifications
| Mitsubishi Hyper-Heat FX 24,000 BTU | Perfect Aire Quick Connect 24,000 BTU 230V | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 24,000 BTU | 24,000 BTU |
| Cooling at 95 °F | 20,800 Btu/h | 24,000 Btu/h |
| Heating at 47 °F | 19,800 Btu/h | 24,000 Btu/h |
| Heating at 17 °F (max) | 29,200 Btu/h | 24,000 Btu/h |
| Heating at 5 °F (max) | 26,600 Btu/h | 19,800 Btu/h |
| Heat kept at 5 °F | 134% | 82% |
| Price per 1,000 Btu/h at 5 °F | - | $102 |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 10.5 | 9.5 |
| SEER2 | 23.5 | 22.5 |
| EER2 | 13.3 | 12.2 |
| COP at 5 °F | 2.04 | 1.84 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 215912359 | 216498647 |
| Operating range | ||
| Heats down to | -22 °F | -4 °F |
| Cooling range | 14 to 115 °F | 5 to 115 °F |
| Installation | ||
| Installed by | Professional (sold through installers) | Sold for self-install (DIY) |
| Line set connection | Flare fittings (vacuum pump needed) | Quick-connect (no vacuum pump) |
| Line set | up to 100 ft | 25 ft included |
| Voltage | 230 V | 230 V |
| Refrigerant | R-454B | R-454B |
| Indoor unit | MSZ-FX24NL | 4PAMSHQCW24 |
| Outdoor unit | MUZ-FX24NLHZ | 4PAMSHQCO24 |
| Build | ||
| Indoor noise | 27–53 dB(A) | - |
| Outdoor noise | 55 dB(A) | - |
| Wi-Fi | Built in | Built in |
| Room size (maker) | - | up to 1,000 sq ft |
| Weight | indoor 31.6 lb / outdoor 124 lb | indoor 33.2 lb / outdoor 121.2 lb |
| Warranty | 10 yr compressor, 10 yr parts | 7 yr compressor, 7 yr parts |
| Warranty with DIY install | No, a licensed installer is required | Yes |
| Released | 2025-02 | 2025-09 |
