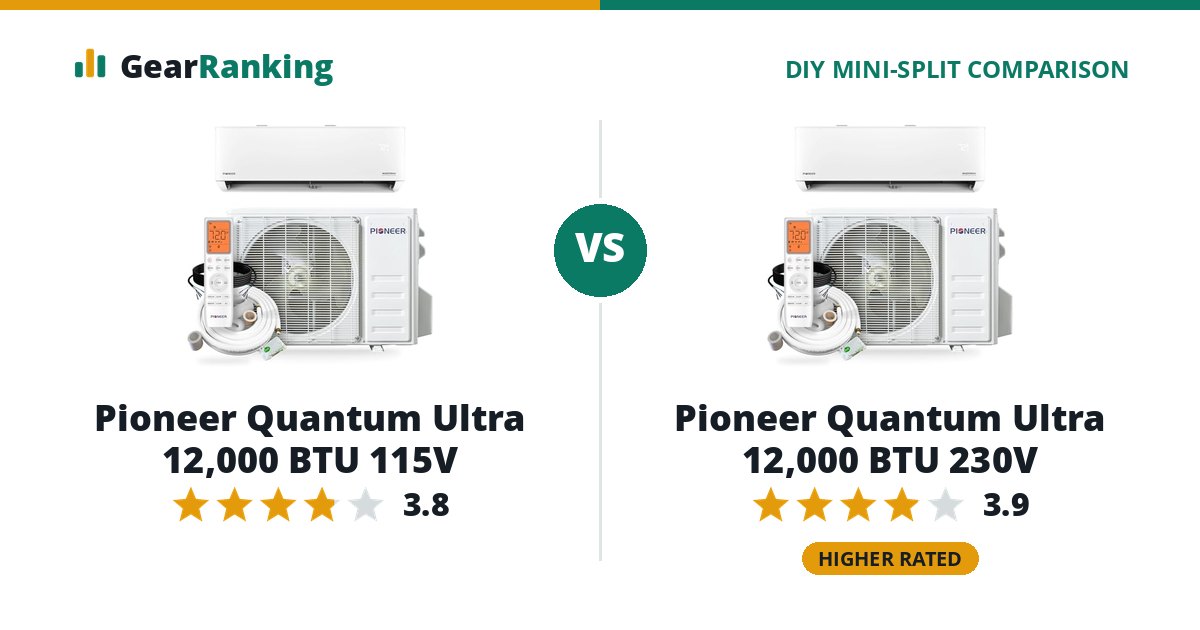

The Pioneer Quantum Ultra 12,000 BTU 230V and the Pioneer Quantum Ultra 12,000 BTU 115V are evenly matched, rated 3.9 and 3.8. The Pioneer Quantum Ultra 12,000 BTU 230V costs $20 less ($1,148 vs $1,168).
A low price for a self-installer who owns or will rent a vacuum pump. The Klimaire DIY is the same certified system with quick-connect lines, and Della’s Optima has near-identical ratings for less.
Amazon Pioneer Mini Split store $1,148A low price for a self-installer who owns or will rent a vacuum pump. The Klimaire DIY is the same certified system with quick-connect lines, and Della’s Optima has near-identical ratings for less.
Amazon $1,168 Pioneer Mini Split store $1,168Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Each factor is scored 0-100 against the same fixed reference points for every 12,000 BTU DIY mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | Pioneer Quantum Ultra 12,000 BTU 230V | Pioneer Quantum Ultra 12,000 BTU 115V |
|---|---|---|
| Overall rating | 3.9/5 | 3.8/5 |
| Value 35% | 90 $126 per 1,000 Btu/h of heat at 5 °F | 88 $131 per 1,000 Btu/h of heat at 5 °F |
| Cold weather 25% | 53 keeps 72% of its heat at 5 °F, heats down to -13 °F | 53 keeps 72% of its heat at 5 °F, heats down to -13 °F |
| Efficiency 20% | 69 10 HSPF2, 24 SEER2, COP 2.10 at 5 °F | 66 10 HSPF2, 23 SEER2, COP 2.10 at 5 °F |
| Warranty 15% | 49 5-year compressor, 5-year parts, for a DIY install | 49 5-year compressor, 5-year parts, for a DIY install |
| Noise 5% | 48 indoor unit from 30 dB(A) | 48 indoor unit from 30 dB(A) |
| Pioneer Quantum Ultra 12,000 BTU 230V | Pioneer Quantum Ultra 12,000 BTU 115V | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 12,000 BTU | 12,000 BTU |
| Cooling at 95 °F | 12,000 Btu/h | 12,000 Btu/h |
| Heating at 47 °F | 12,600 Btu/h | 12,400 Btu/h |
| Heating at 17 °F (max) | 10,000 Btu/h | 10,000 Btu/h |
| Heating at 5 °F (max) | 9,100 Btu/h | 8,900 Btu/h |
| Heat kept at 5 °F | 72% | 72% |
| Price per 1,000 Btu/h at 5 °F | $126 | $131 |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 10 | 10 |
| SEER2 | 24 | 23 |
| EER2 | 13 | 13 |
| COP at 5 °F | 2.10 | 2.10 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 217048751 | 217048750 |
| Operating range | ||
| Heats down to | -13 °F | -13 °F |
| Cooling range | 5 to 131 °F | 5 to 131 °F |
| Installation | ||
| Line set connection | Flare fittings (vacuum pump needed) | Flare fittings (vacuum pump needed) |
| Line set | 16 ft included, up to 50 ft | 16 ft included, up to 50 ft |
| Voltage | 230 V | 115 V |
| Refrigerant | R-454B | R-454B |
| Indoor unit | WT012GLSI24HLG | WT012ALSI24HLG |
| Outdoor unit | YN012GLSI24RPG | YN012ALSI24RPG |
| Build | ||
| Indoor noise | 30–46 dB(A) | 30–46 dB(A) |
| Outdoor noise | 52 dB(A) | 52 dB(A) |
| Wi-Fi | Built in | Built in |
| Room size (maker) | up to 500 sq ft | up to 500 sq ft |
| Weight | indoor 23.1 lb / outdoor 58.4 lb | indoor 23.1 lb / outdoor 58.4 lb |
| Warranty | 10 yr compressor, 7 yr parts | 10 yr compressor, 7 yr parts |
| Warranty with DIY install | Yes | Yes |
| DIY install warranty | 5 yr compressor, 5 yr parts | 5 yr compressor, 5 yr parts |
| Released | 2025-06 | 2025-06 |
