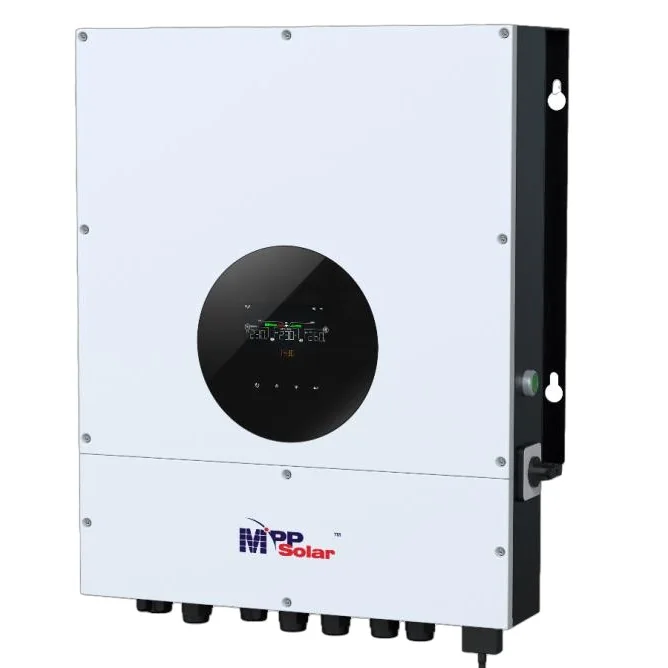

SRNE ASP 6.5kW Split Phase
For off-grid homes that want 6.5 kW of split-phase power with a lot of solar input. Rebadged versions of this SRNE platform are easier to buy in the US.
3.1/5
A 6 kW outdoor split-phase hybrid for off-grid homes and garages. Grid-tied buyers should pick a UL-listed unit.
- 6 kWOutput
- 48 VBattery
- 7,500 WSolar input
- 2 yearsWarranty
See it at MPP Solar
No store we check sells it online; the maker lists where to buy or who installs it.
Pros
- Outdoor-rated, so it can hang on an exterior wall
- One unit gives 120/240 V for 240 V loads
- Sells to the grid or runs off-grid
- Built-in Wi-Fi and touchscreen
Cons
- Not UL 1741 listed, which many US utilities require for grid connection
- Hard to buy as a single unit in the US
- Two-year warranty
The MPP Solar LVX WP family
Every MPP Solar LVX WP model we rank, smallest first. Ratings compare each against its own output.
| Model | Output | Rating | Price |
|---|---|---|---|
| MPP Solar LVX6048WP (this one) | 6 kW | 3.1/5 | - |
| MPP Solar LVX 12KW WP | 10 kW | 3.2/5 | - |
How it scores
The rating comes from 5 measured or published factors, each scored 0-100 against fixed reference points for its output. How we rank explains each one.
Specifications
| Model number | LVX6048WP |
|---|---|
| Output | |
| Output voltage | 120/240 V split-phase |
| Continuous output | 6,000 W |
| Peak efficiency | 91% |
| Transfer time | 15 ms |
| Parallel units | Up to 6 units |
| Solar | |
| Max PV power | 7,500 W |
| Max PV voltage (Voc) | 600 V |
| MPPT range | 120 to 550 V |
| MPPT trackers | 2 |
| PV current per tracker | 15 A |
| Runs without battery | Yes |
| Battery and grid | |
| Battery voltage | 48 V |
| Battery types | Lithium, lead-acid |
| Max charge current | 120 A |
| AC charge current | 120 A |
| Battery communication | Yes |
| Grid sell-back | Yes |
| Generator input | Yes |
| UL 1741 | No |
| Build | |
| App monitoring | Included |
| Enclosure | IP65 |
| Dimensions | 215.5 x 515 x 700 mm |
| Weight | 90.4 lb |
| Warranty | 2 years |
| Released | 2022-02 |
Alternatives in this output
MPP Solar LVX 12KW WP
A 10 kW outdoor hybrid for whole-home backup with grid sell-back. It is easier to justify if you can find a single unit at a fair price.
MPP Solar LV6048
An older low-voltage split-phase design for off-grid buyers with lots of small panels. Newer high-voltage units are easier to wire.
