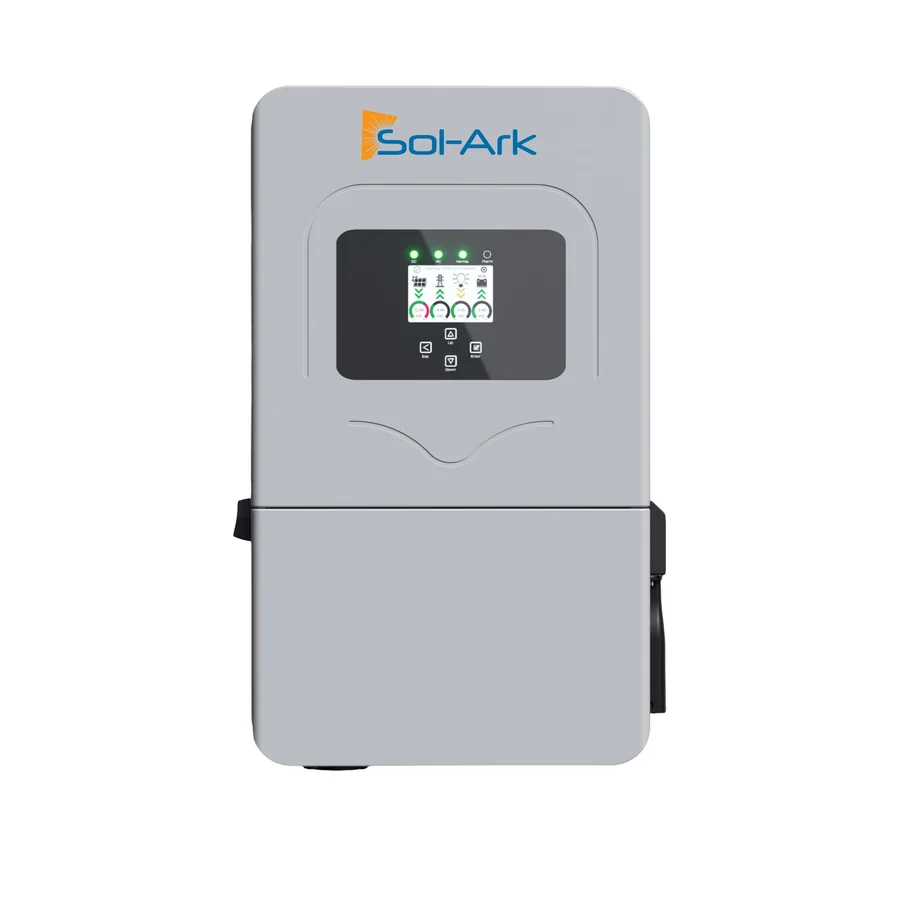

Sol-Ark Limitless 12K-2P-LL

For homes that want Sol-Ark’s backup and grid-sell features on a smaller budget, usually on a critical-loads panel. Its high idle draw is the main trade-off.

  • 10 kWOutput
  • 48 VBattery
  • 12,000 WSolar input
  • 96 WIdle draw
  • 10 yearsWarranty
Check price at Shop Solar Kits$3,849

Price checked October 23, 2026. As an Amazon Associate we earn from qualifying purchases.

Pros
  • Sol-Ark’s whole-home features at a much lower price than the 15K
  • 24 kW surge starts well pumps and AC compressors
  • At 65 lb, one of the lightest split-phase hybrids to hang
  • Ten-year warranty
Cons
  • 96 W idle draw is high for its size
  • 100 A grid passthrough suits a subpanel, not a full 200 A service
  • New model, so there’s little field history yet

The Sol-Ark Limitless family

Every Sol-Ark Limitless model we rank, smallest first. Ratings compare each against its own output.

ModelOutputRatingPrice
Sol-Ark Limitless 12K-2P-LL (this one)10 kW4.0/5$3,849
Sol-Ark 15K-2P12 kW4.1/5$4,999
Sol-Ark 18K-2P18 kW4.1/5$6,298

How it scores

The rating comes from 5 measured or published factors, each scored 0-100 against fixed reference points for its output. How we rank explains each one.

Specifications

Model number12K-2P-LL
Output
Output voltage120/240 V split-phase
Continuous output10,000 W
Surge24,000 W
Max efficiency97.6%
Idle draw96 W
Transfer time5 ms
Parallel unitsUp to 12 units
Solar
Max PV power12,000 W
Max PV voltage (Voc)500 V
MPPT range150 to 425 V
MPPT trackers3
PV current per tracker32 A
Battery and grid
Battery voltage48 V
Battery typesLithium, lead-acid
Max charge current220 A
Battery communicationYes
Grid sell-backYes
Generator inputYes
UL 1741UL 1741 SB
Build
App monitoringIncluded
EnclosureIP65 / NEMA 3R
Dimensions25.7 x 16.59 x 9.8 in
Weight65 lb
Warranty10 years
Released2026-06
