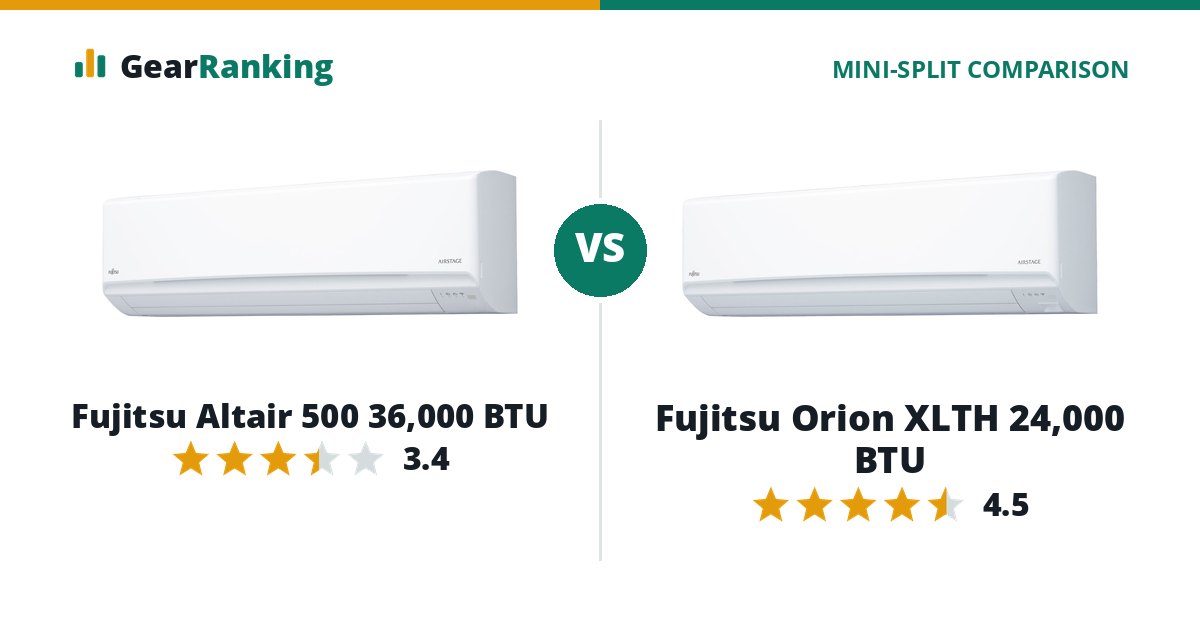

Fujitsu Orion XLTH 24,000 BTU
#3 in 24,000 BTUFull review
Fujitsu’s cold-climate line, with more than its rated heat at 5 °F and very high certified efficiency, for homes heating through a cold winter.
The Fujitsu Orion XLTH 24,000 BTU rates 4.5 among 24,000 BTU mini-splits; the Fujitsu Altair 500 36,000 BTU rates 3.4 among 36,000 BTU ones.
Fujitsu Altair 500 36,000 BTU
#1 in 36,000 BTUFull review
Fujitsu’s mainstream line for cooling and mild-winter heating, with a 10-year registered warranty. It stops heating below 5 °F.
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Scores side by side
These two sit in different size classes (24,000 BTU and 36,000 BTU), and each is scored against the reference points for its own class, so a rating says how well each does among its own size peers. How we rank explains each factor.
| Factor weight | Fujitsu Orion XLTH 24,000 BTU | Fujitsu Altair 500 36,000 BTU |
|---|---|---|
| Overall rating | 4.5/5 | 3.4/5 |
| Cold weather 40% | 90 keeps 102% of its heat at 5 °F, heats down to -15 °F | 31 keeps 76% of its heat at 5 °F, heats down to 5 °F |
| Efficiency 30% | 85 11.9 HSPF2, 24 SEER2, COP 2.06 at 5 °F | 64 10 HSPF2, 21 SEER2, COP 2.20 at 5 °F |
| Warranty 20% | 100 10-year compressor, 10-year parts | 100 10-year compressor, 10-year parts |
| Noise 10% | 48 indoor unit from 30 dB(A) | 38 indoor unit from 32 dB(A) |
Specifications
| Fujitsu Orion XLTH 24,000 BTU | Fujitsu Altair 500 36,000 BTU | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 24,000 BTU | 36,000 BTU |
| Cooling at 95 °F | 22,000 Btu/h | 33,000 Btu/h |
| Heating at 47 °F | 25,200 Btu/h | 34,000 Btu/h |
| Heating at 17 °F (max) | 28,900 Btu/h | 30,100 Btu/h |
| Heating at 5 °F (max) | 25,800 Btu/h | 25,800 Btu/h |
| Heat kept at 5 °F | 102% | 76% |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 11.9 | 10 |
| SEER2 | 24 | 21 |
| EER2 | 12.5 | 9.8 |
| COP at 5 °F | 2.06 | 2.20 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 215647924 | 215390441 |
| Operating range | ||
| Heats down to | -15 °F | 5 °F |
| Cooling range | 14 to 122 °F | 14 to 122 °F |
| Installation | ||
| Installed by | Professional (sold through installers) | Professional (sold through installers) |
| Line set connection | Flare fittings (vacuum pump needed) | Flare fittings (vacuum pump needed) |
| Line set | up to 164 ft | up to 164 ft |
| Voltage | 230 V | 230 V |
| Refrigerant | R-32 | R-32 |
| Indoor unit | ASUH24KZAS | ASUH36KPAS |
| Outdoor unit | AOUH24KZAH1 | AOUH36KPAS1 |
| Build | ||
| Indoor noise | 30–47 dB(A) | 32–51 dB(A) |
| Outdoor noise | 51 dB(A) | 54 dB(A) |
| Wi-Fi | Built in | Optional module |
| Weight | indoor 36 lb / outdoor 117 lb | indoor 36 lb / outdoor 117 lb |
| Warranty | 10 yr compressor, 10 yr parts | 10 yr compressor, 10 yr parts |
| Warranty with DIY install | No, a licensed installer is required | No, a licensed installer is required |
