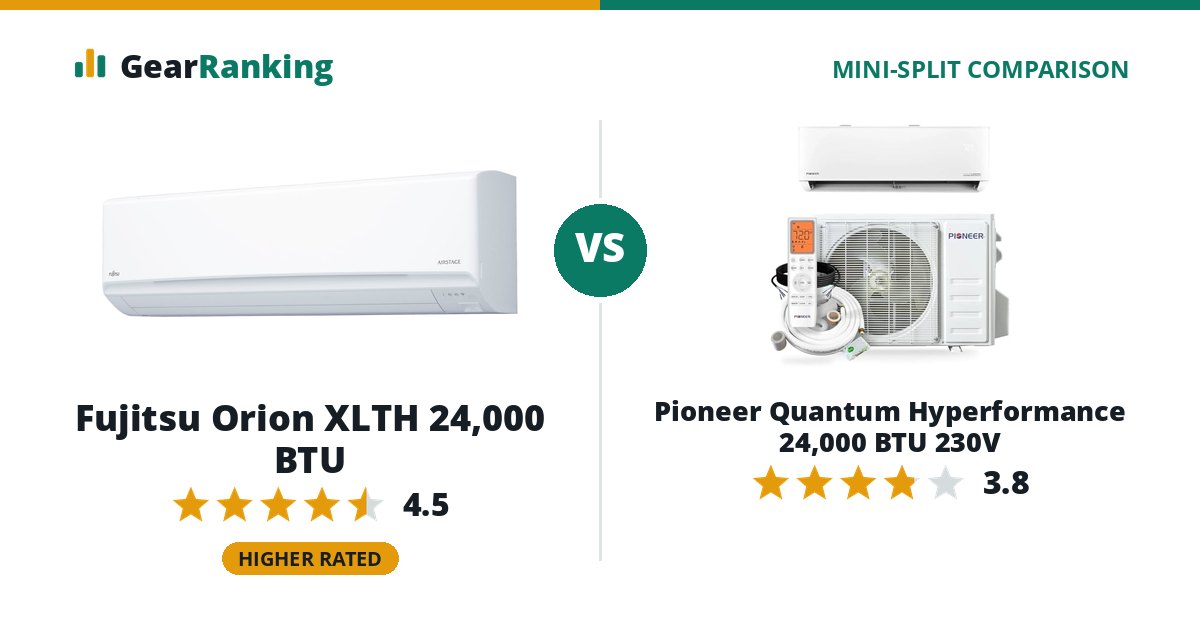

Fujitsu Orion XLTH 24,000 BTU
#3 in 24,000 BTUFull review
Fujitsu’s cold-climate line, with more than its rated heat at 5 °F and very high certified efficiency, for homes heating through a cold winter.
The Fujitsu Orion XLTH 24,000 BTU is the better mini-split overall, rated 4.5 to 3.8. The Fujitsu Orion XLTH 24,000 BTU leads on warranty, efficiency and noise.
Pioneer Quantum Hyperformance 24,000 BTU 230V
#8 in 24,000 BTUFull review
Full rated heat in deep cold at a fair price, for a self-installer comfortable with a vacuum pump. Della’s Optima Pro has near-identical certified ratings for a little less.
Amazon $2,298 Pioneer Mini Split store $2,323$2,298
Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Fujitsu Orion XLTH 24,000 BTU for warranty (10-year compressor, 10-year parts vs 5-year compressor, 5-year parts, for a DIY install), efficiency (11.9 HSPF2, 24 SEER2, COP 2.06 at 5 °F vs 10 HSPF2, 22.5 SEER2, COP 1.80 at 5 °F) and noise (indoor unit from 30 dB(A) vs indoor unit from 32 dB(A)).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every 24,000 BTU mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | Fujitsu Orion XLTH 24,000 BTU | Pioneer Quantum Hyperformance 24,000 BTU 230V |
|---|---|---|
| Overall rating | 4.5/5 | 3.8/5 |
| Cold weather 40% | 90 keeps 102% of its heat at 5 °F, heats down to -15 °F | 92 keeps 93% of its heat at 5 °F, heats down to -22 °F |
| Efficiency 30% | 85 11.9 HSPF2, 24 SEER2, COP 2.06 at 5 °F | 54 10 HSPF2, 22.5 SEER2, COP 1.80 at 5 °F |
| Warranty 20% | 100 10-year compressor, 10-year parts | 49 5-year compressor, 5-year parts, for a DIY install |
| Noise 10% | 48 indoor unit from 30 dB(A) | 38 indoor unit from 32 dB(A) |
Specifications
| Fujitsu Orion XLTH 24,000 BTU | Pioneer Quantum Hyperformance 24,000 BTU 230V | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 24,000 BTU | 24,000 BTU |
| Cooling at 95 °F | 22,000 Btu/h | 24,000 Btu/h |
| Heating at 47 °F | 25,200 Btu/h | 24,000 Btu/h |
| Heating at 17 °F (max) | 28,900 Btu/h | 24,000 Btu/h |
| Heating at 5 °F (max) | 25,800 Btu/h | 22,400 Btu/h |
| Heat kept at 5 °F | 102% | 93% |
| Price per 1,000 Btu/h at 5 °F | - | $103 |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 11.9 | 10 |
| SEER2 | 24 | 22.5 |
| EER2 | 12.5 | 11.7 |
| COP at 5 °F | 2.06 | 1.80 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 215647924 | 217048757 |
| Operating range | ||
| Heats down to | -15 °F | -22 °F |
| Cooling range | 14 to 122 °F | 5 to 131 °F |
| Installation | ||
| Installed by | Professional (sold through installers) | Sold for self-install (DIY) |
| Line set connection | Flare fittings (vacuum pump needed) | Flare fittings (vacuum pump needed) |
| Line set | up to 164 ft | 16 ft included, up to 65 ft |
| Voltage | 230 V | 230 V |
| Refrigerant | R-32 | R-454B |
| Indoor unit | ASUH24KZAS | WT024GLSI25HLH |
| Outdoor unit | AOUH24KZAH1 | YN024GLSI25RPH |
| Build | ||
| Indoor noise | 30–47 dB(A) | 32–49 dB(A) |
| Outdoor noise | 51 dB(A) | 61 dB(A) |
| Wi-Fi | Built in | Built in |
| Room size (maker) | - | up to 1,000 sq ft |
| Weight | indoor 36 lb / outdoor 117 lb | indoor 30.9 lb / outdoor 108 lb |
| Warranty | 10 yr compressor, 10 yr parts | 10 yr compressor, 7 yr parts |
| Warranty with DIY install | No, a licensed installer is required | Yes |
| DIY install warranty | - | 5 yr compressor, 5 yr parts |
| Released | - | 2025-06 |
