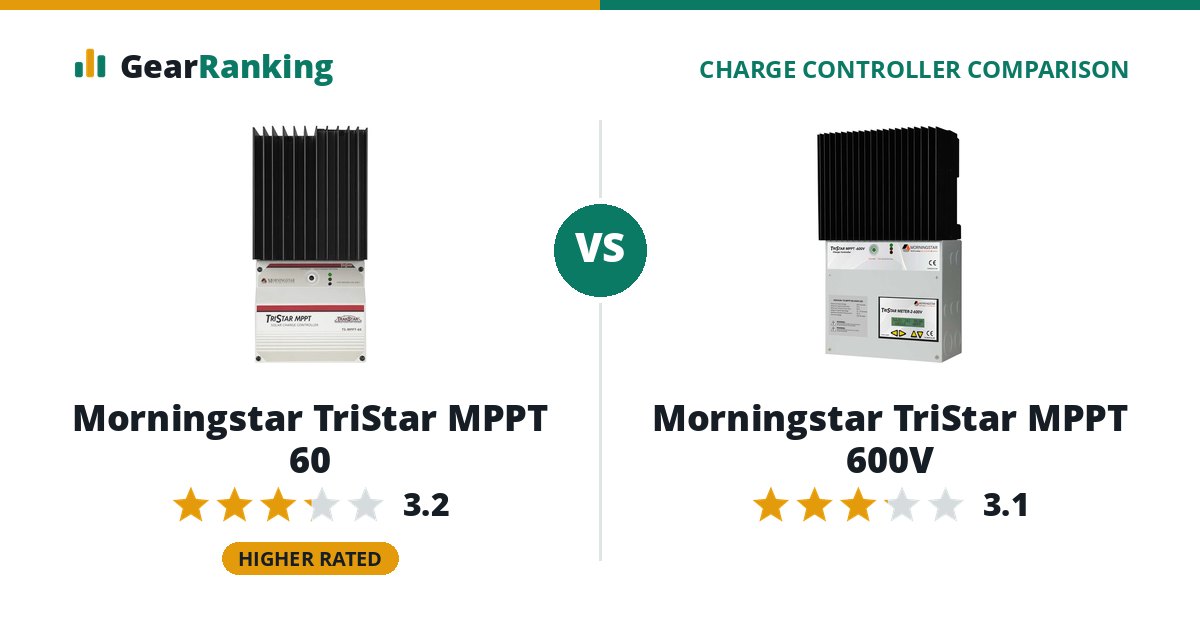

Morningstar TriStar MPPT 60
#35 in MPPT solarFull review
For off-grid cabins and remote sites that want a proven 60 A controller with wired network monitoring. Overkill for most RVs and vans.
Amazon $698$698
The Morningstar TriStar MPPT 60 is the better charge controller overall, rated 3.2 to 3.1. The Morningstar TriStar MPPT 60 leads on efficiency. The Morningstar TriStar MPPT 60 costs $300 less ($698 vs $998).
Morningstar TriStar MPPT 600V
#42 in MPPT solarFull review
For off-grid homes and remote sites where the array sits far from the batteries and long high-voltage strings save on copper. Overpriced for a short wire run.
NAZ Solar Electric $998$998
Prices were last checked October 24, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the Morningstar TriStar MPPT 60 for efficiency (99% peak efficiency (maker rating) vs 97.9% peak efficiency (maker rating)).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every MPPT solar charge controller; a clear win is highlighted. How we rank explains each one.
| Factor weight | Morningstar TriStar MPPT 60 | Morningstar TriStar MPPT 600V |
|---|---|---|
| Overall rating | 3.2/5 | 3.1/5 |
| Value 35% | 0 $11.63 per amp of charge current | 0 $16.63 per amp of charge current |
| Features 25% | 40 temperature sensor, 150 V PV input; no Bluetooth | 40 temperature sensor, 600 V PV input; no Bluetooth |
| Efficiency 20% | 100 99% peak efficiency (maker rating) | 73 97.9% peak efficiency (maker rating) |
| Warranty 20% | 100 5-year warranty | 100 5-year warranty |
Specifications
| Morningstar TriStar MPPT 60 | Morningstar TriStar MPPT 600V | |
|---|---|---|
| Charging | ||
| Type | MPPT solar charge controller | MPPT solar charge controller |
| Charge current | 60 A | 60 A |
| Battery voltage | 12/24/36/48 V | 24/36/48/60 V |
| Lithium profile | - | No |
| Custom profile | Yes | Yes |
| Temperature sensor | Included | Included |
| Peak efficiency | 99% | 97.9% |
| Standby draw | - | 52 mA |
| Inputs | ||
| Max PV voltage (Voc) | 150 V | 600 V |
| Max PV power (12 V) | 800 W | - |
| Max PV power (48 V) | - | 3,200 W |
| Monitoring and build | ||
| Bluetooth | No | No |
| Display | No | No |
| Load output | No | No |
| Cooling | passive (no fans) | passive (no fans) |
| Water resistance | IP20 | IP20 (Type 1, indoor and vented) |
| Dimensions | 29.1 x 13.0 x 14.2 cm (11.4 x 5.1 x 5.6 in) | 39.2 x 22.1 x 14.9 cm (15.4 x 8.7 x 5.9 in) |
| Weight | 9.2 lb | 19.8 lb |
| Warranty | 5 years | 5 years |
| Released | 2012-11 | 2013-11 |
