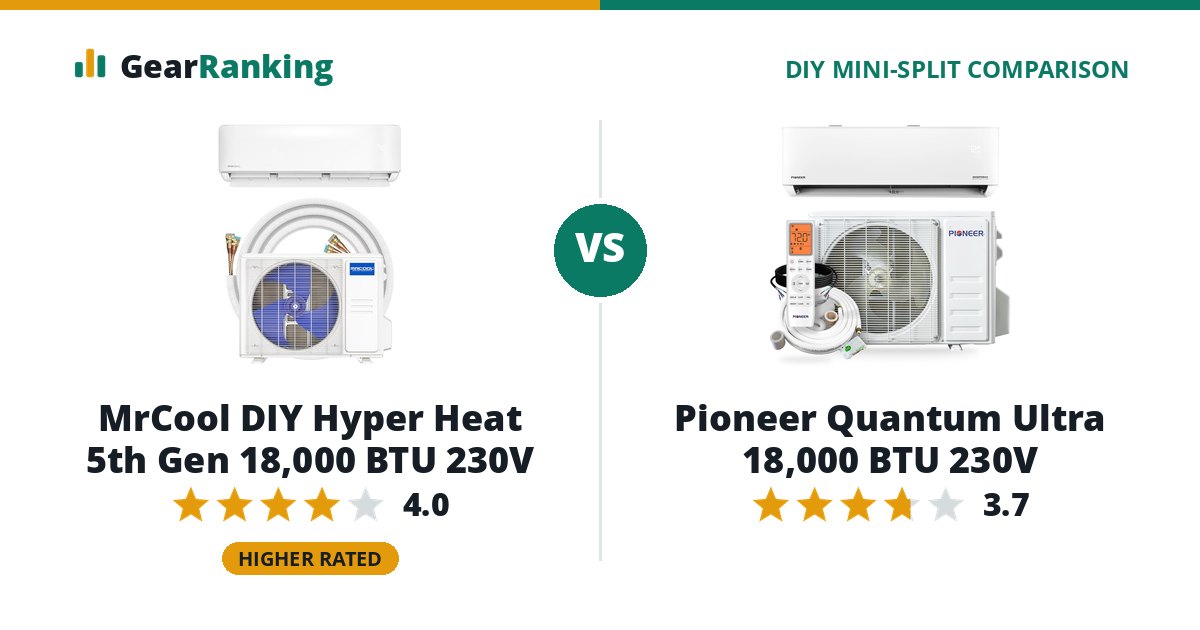

The MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V is the better DIY mini-split overall, rated 4.0 to 3.7. The MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V leads on cold weather, efficiency and noise. The Pioneer Quantum Ultra 18,000 BTU 230V wins on value. The Pioneer Quantum Ultra 18,000 BTU 230V costs $1,635 less ($1,538 vs $3,173).
For cold-climate homes where a quick-connect install matters more than price: it holds its full heat far colder than other quick-connect units. Flare-connect units match its cold-weather output for much less.
Amazon $3,173 MRCOOL DIY Direct $3,205A low price for a self-installer who owns or will rent a vacuum pump. The Klimaire DIY is the same certified system with quick-connect lines, and Della’s Optima has near-identical ratings for less.
Pioneer Mini Split store $1,538Prices were last checked October 21, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Each factor is scored 0-100 against the same fixed reference points for every 18,000 BTU DIY mini-split; a clear win is highlighted. How we rank explains each one.
| Factor weight | MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V | Pioneer Quantum Ultra 18,000 BTU 230V |
|---|---|---|
| Overall rating | 4.0/5 | 3.7/5 |
| Value 35% | 52 $176 per 1,000 Btu/h of heat at 5 °F | 85 $113 per 1,000 Btu/h of heat at 5 °F |
| Cold weather 25% | 100 keeps 100% of its heat at 5 °F, heats down to -22 °F | 53 keeps 72% of its heat at 5 °F, heats down to -13 °F |
| Efficiency 20% | 73 11 HSPF2, 21.2 SEER2, COP 1.99 at 5 °F | 56 10 HSPF2, 23 SEER2, COP 1.80 at 5 °F |
| Warranty 15% | 64 7-year compressor, 5-year parts | 49 5-year compressor, 5-year parts, for a DIY install |
| Noise 5% | 93 indoor unit from 20.5 dB(A) | 29 indoor unit from 34 dB(A) |
| MrCool DIY Hyper Heat 5th Gen 18,000 BTU 230V | Pioneer Quantum Ultra 18,000 BTU 230V | |
|---|---|---|
| Capacity (certified) | ||
| Size (nominal) | 18,000 BTU | 18,000 BTU |
| Cooling at 95 °F | 18,000 Btu/h | 18,000 Btu/h |
| Heating at 47 °F | 18,000 Btu/h | 19,000 Btu/h |
| Heating at 17 °F (max) | 20,300 Btu/h | 17,500 Btu/h |
| Heating at 5 °F (max) | 18,000 Btu/h | 13,600 Btu/h |
| Heat kept at 5 °F | 100% | 72% |
| Price per 1,000 Btu/h at 5 °F | $176 | $113 |
| Efficiency (certified) | ||
| HSPF2 (Region IV) | 11 | 10 |
| SEER2 | 21.2 | 23 |
| EER2 | 12.5 | 12.5 |
| COP at 5 °F | 1.99 | 1.80 |
| ENERGY STAR | ENERGY STAR Cold Climate | ENERGY STAR Cold Climate |
| AHRI certificate | 216032551 | 217048752 |
| Operating range | ||
| Heats down to | -22 °F | -13 °F |
| Cooling range | -22 to 122 °F | 5 to 131 °F |
| Installation | ||
| Line set connection | Quick-connect (no vacuum pump) | Flare fittings (vacuum pump needed) |
| Line set | 25 ft included, up to 75 ft | 16 ft included, up to 65 ft |
| Voltage | 230 V | 230 V |
| Refrigerant | R-454B | R-454B |
| Indoor unit | DIY-18-HP-WMAH-230D25-O | WT018GLSI24HLG |
| Outdoor unit | DIYHH-18-HP-C-230D25-O | YN018GLSI24RPG |
| Build | ||
| Indoor noise | 20.5–54.5 dB(A) | 34–50 dB(A) |
| Outdoor noise | 58 dB(A) | 53 dB(A) |
| Wi-Fi | Built in | Built in |
| Room size (maker) | up to 800 sq ft | up to 750 sq ft |
| Weight | indoor 35.5 lb / outdoor 99.9 lb | indoor 30.9 lb / outdoor 90.4 lb |
| Warranty | 7 yr compressor, 5 yr parts | 10 yr compressor, 7 yr parts |
| Warranty with DIY install | Yes | Yes |
| DIY install warranty | - | 5 yr compressor, 5 yr parts |
| Released | - | 2025-06 |
