Wallbox Pulsar Plus 48A
#5 in 48 A and upFull review
A compact 48 A smart charger for buyers who may add solar or need panel-aware charging later; it costs more than simpler 48 A units.
Amazon $699$699

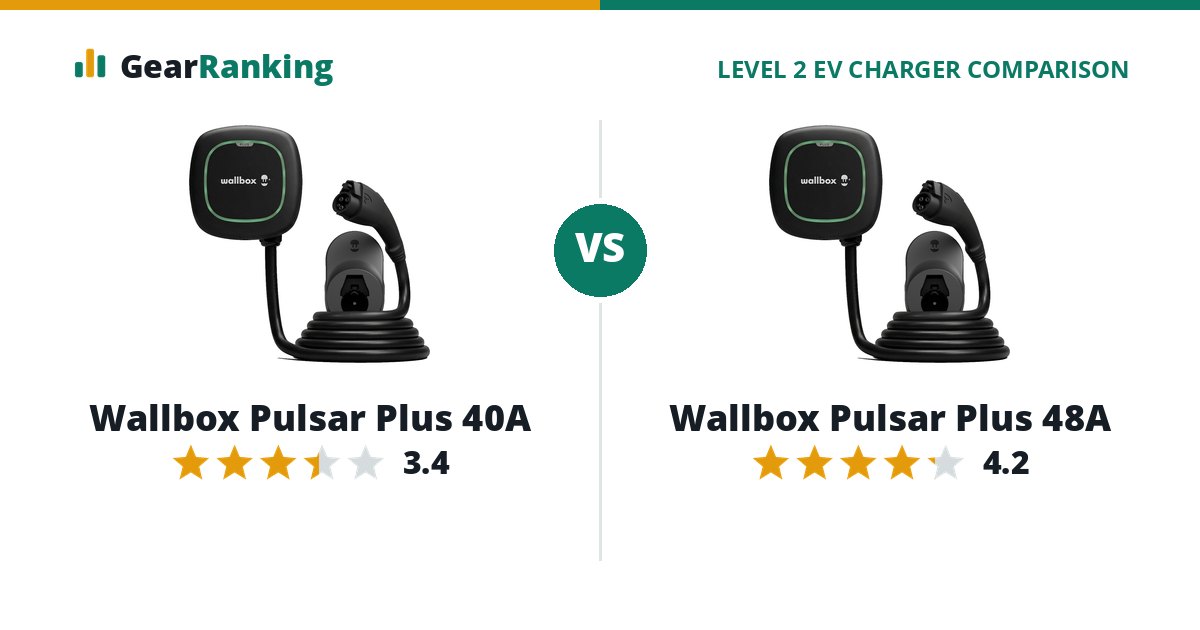

The Wallbox Pulsar Plus 48A rates 4.2 among 48 A and up level 2 EV chargers; the Wallbox Pulsar Plus 40A rates 3.4 among up to 40 A ones. The Wallbox Pulsar Plus 48A costs $50.99 less ($699 vs $749.99).
Wallbox Pulsar Plus 40A
#16 in Up to 40 AFull review
A compact, well-featured smart charger for owners who want solar or panel-aware charging later. The 40 A plug-in version costs a lot for its power.
Amazon $749.99$749.99
Prices were last checked October 22, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Scores side by side
These two sit in different size classes (48 A and up and up to 40 A), and each is scored against the reference points for its own class, so a rating says how well each does among its own size peers. How we rank explains each factor.
| Factor weight | Wallbox Pulsar Plus 48A | Wallbox Pulsar Plus 40A |
|---|---|---|
| Overall rating | 4.2/5 | 3.4/5 |
| Value 30% | 40 $699 | 0 $749.99 |
| Safety listing 15% | 100 listed: UL 2594, UL 2231 (NRTL) | 100 listed: UL 2594, UL 2231 (NRTL) |
| Smart features 15% | 100 app control, off-peak scheduling, load sharing | 100 app control, off-peak scheduling, load sharing |
| ENERGY STAR 10% | 100 ENERGY STAR certified | 0 not ENERGY STAR certified |
| Weather rating 10% | 100 NEMA 4: rain, hose spray and dust | 100 NEMA 4: rain, hose spray and dust |
| Cable 10% | 100 25 ft cable | 100 25 ft cable |
| Warranty 10% | 50 3-year warranty | 50 3-year warranty |
Specifications
| Wallbox Pulsar Plus 48A | Wallbox Pulsar Plus 40A | |
|---|---|---|
| Charging | ||
| Maximum power | 48 A (11.5 kW) | 40 A (9.6 kW) |
| Adjustable current | Yes | Yes |
| Vehicle plug | J1772 or Tesla (NACS) | J1772 or Tesla (NACS) |
| Cable length | 25 ft | 25 ft |
| Installation | Hardwired | Plug-in (NEMA 14-50) |
| Smart features | ||
| Wi-Fi | Yes | Yes |
| App | Yes | Yes |
| Off-peak scheduling | Yes | Yes |
| Load sharing | Yes | Yes |
| OCPP (third-party networks) | Yes | Yes |
| Safety and build | ||
| Safety listing | UL 2594, UL 2231 (NRTL) | UL 2594, UL 2231 (NRTL) |
| ENERGY STAR | Yes | No |
| Weather rating | NEMA 4 | NEMA 4 |
| Lowest operating temperature | -22 °F | -22 °F |
| Dimensions | 7.9 x 7.8 x 3.9 in | 7.9 x 7.8 x 3.9 in |
| Weight | 4.4 lb | 4.4 lb |
| Warranty | 3 years | 3 years |
