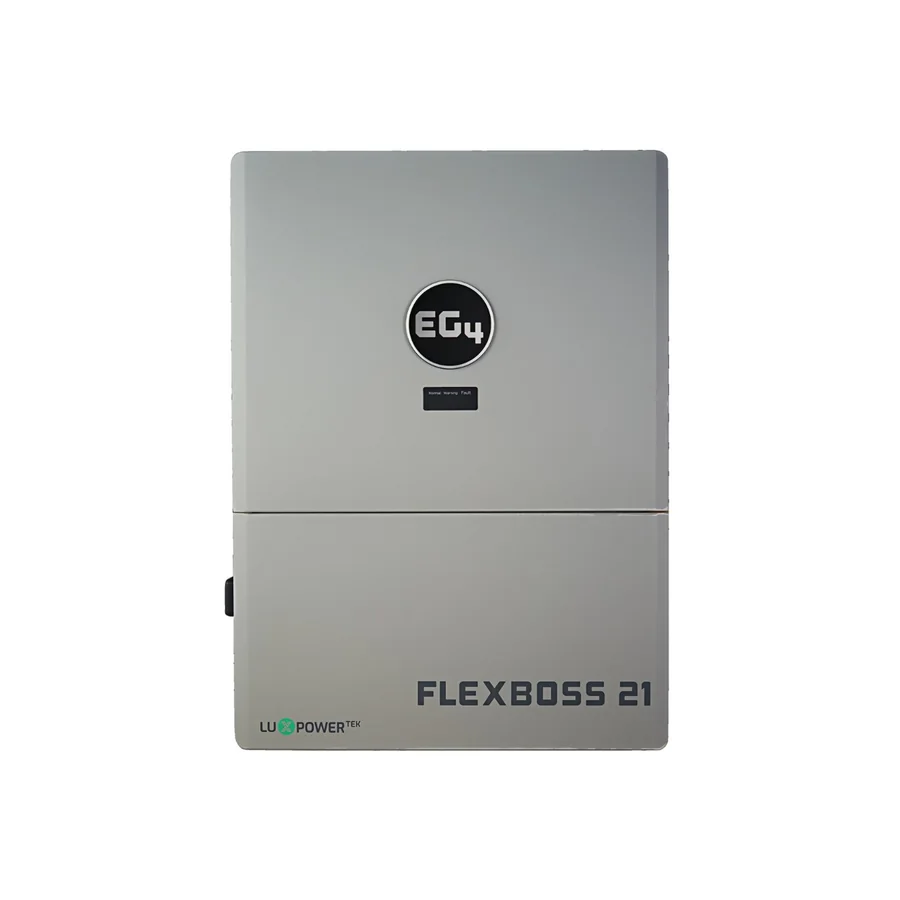

EG4 FlexBOSS21

Last updated: October 24, 2026

EG4 FlexBOSS21

For grid-tied homes that want whole-house backup and a big solar array from one inverter. It gives more output than the 18kPV for less money.

  • 12 kWOutput
  • 48 VBattery
  • 21,000 WSolar input
  • 65 WIdle draw
  • 10 yearsWarranty
Check price at Signature Solar$3,599.99

Price checked October 23, 2026. As an Amazon Associate we earn from qualifying purchases.

Pros
  • 16 kW with solar and grid (12 kW from battery) covers large homes from one unit
  • Three trackers take about 21 kW of panels across several roof faces
  • Grid sell with UL 1741 SB, in an outdoor NEMA 4X case
  • Ten-year warranty, with Wi-Fi in the box
Cons
  • About 65 W idle draw
  • At 121 lb it needs two installers
  • Generator hookup isn’t covered on the spec sheet

The EG4 FlexBOSS family

Every EG4 FlexBOSS model we rank, smallest first. Ratings compare each against its own output.

ModelOutputRatingPrice
EG4 FlexBOSS1810 kW4.4/5$3,199.99
EG4 FlexBOSS21 (this one)12 kW4.4/5$3,599.99

How it scores

The rating comes from 5 measured or published factors, each scored 0-100 against fixed reference points for its output. How we rank explains each one.

Specifications

Model numberIV-16000-HYB-AW-FX-XX
Output
Output voltage120/240 V split-phase
Continuous output12,000 W
Surge24,000 W
Peak efficiency94%
CEC efficiency97%
Idle draw65 W
Transfer time20 ms
Parallel unitsUp to 16 units
Solar
Max PV power21,000 W
Max PV voltage (Voc)600 V
MPPT range120 to 440 V
MPPT trackers3
PV current per tracker26 A
Battery and grid
Battery voltage48 V
Max charge current250 A
Battery communicationYes
Grid sell-backYes
UL 1741UL 1741 SB
Build
App monitoringIncluded
EnclosureNEMA 4X
Dimensions30.43 x 22.28 x 11.22 in
Weight121 lb
Warranty10 years
Released2024-11
