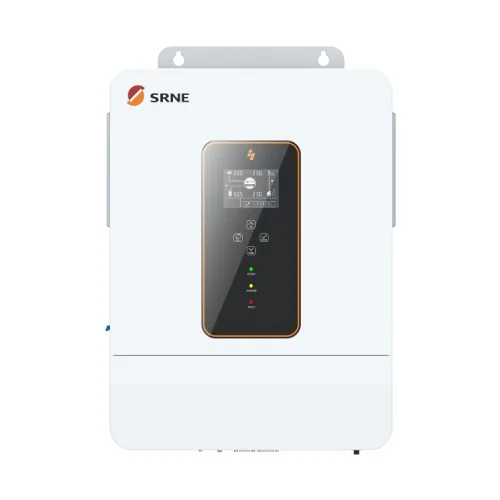

SRNE ASP 6.5kW Split Phase

Last updated: October 24, 2026

SRNE ASP 6.5kW Split Phase
3.2/5#35 of 40 in 120/240 V split-phase hybrid inverters
3.2

For off-grid homes that want 6.5 kW of split-phase power with a lot of solar input. Rebadged versions of this SRNE platform are easier to buy in the US.

  • 6.5 kWOutput
  • 48 VBattery
  • 10,000 WSolar input
  • 2 yearsWarranty
See it at SRNE

No store we check sells it online; the maker lists where to buy or who installs it.

Pros
  • Makes 120/240 V from one unit, so it runs 240 V well pumps without a second inverter
  • Two 550 V solar trackers take 10,000 W of panels on long, light strings
  • Up to six units in parallel as loads grow
Cons
  • Hard to find at US retailers under the SRNE name
  • Off-grid only, and grid and generator share one AC input
  • Wi-Fi monitoring is an add-on module; two-year warranty

How it scores

The rating comes from 5 measured or published factors, each scored 0-100 against fixed reference points for its output. How we rank explains each one.

Specifications

Model numberASP4865U140-H
Output
Output voltage120/240 V split-phase
Continuous output6,500 W
Surge13,000 W
Peak efficiency93%
Transfer time10 ms
Parallel unitsUp to 6 units
Solar
Max PV power10,000 W
Max PV voltage (Voc)550 V
MPPT range150 to 450 V
MPPT trackers2
PV current per tracker18 A
Battery and grid
Battery voltage48 V
Battery typesLithium-ion, lead-acid, user-defined
Max charge current140 A
AC charge current80 A
Grid sell-backNo
Generator inputNo
UL 1741Yes
Build
App monitoringOptional add-on
EnclosureIP20
Dimensions584.6 x 410 x 133 mm
Weight41.7 lb
Warranty2 years
Released2025-10
