Mitsubishi Hyper-Heat FX 24,000 BTU
#1 in 24,000 BTUFull review
Mitsubishi’s flagship cold-climate system: it makes more than its rated heat at 5 °F and keeps heating to −22 °F. For a home that relies on it as the main heat through a cold winter.
4.6/5

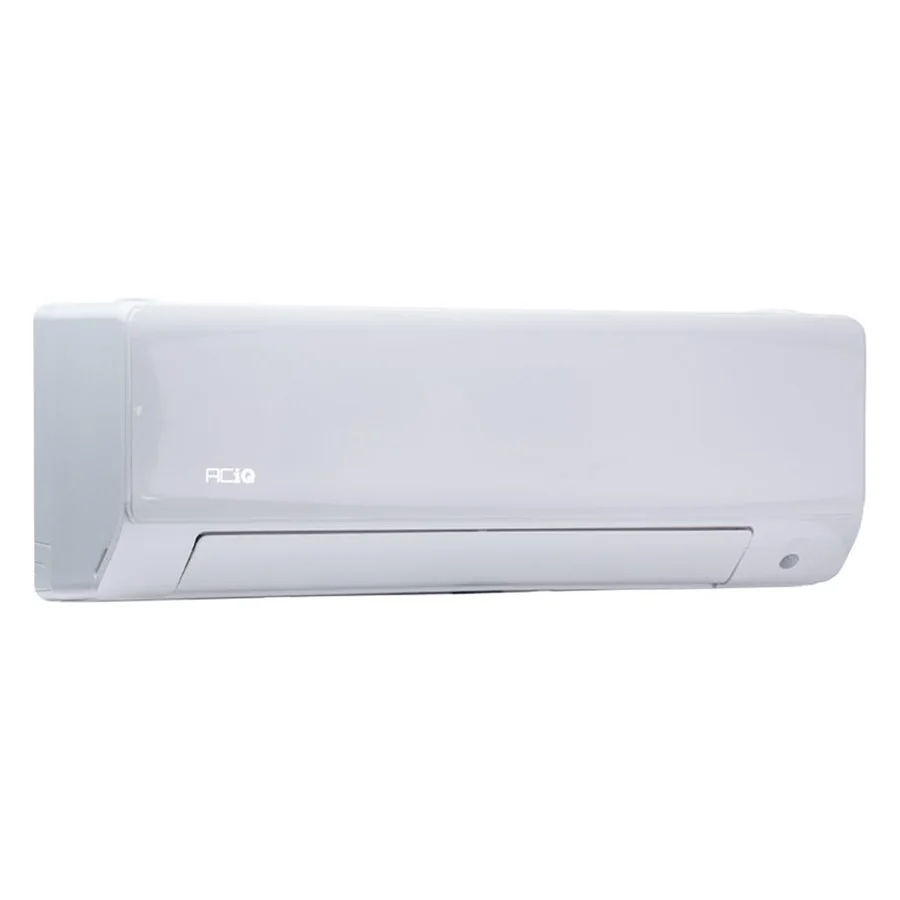

ACiQ’s cold-climate line, sold online, keeps most of its rated heat at 5 °F, heats to −22 °F and gets a 12-year compressor warranty once registered. A certified technician has to install it.
- 24,000 BTUSize
- 24,200 Btu/hHeat at 5 °F
- 83%Kept at 5 °F
- 13.5 / 21HSPF2 / SEER2
- Pro installInstall
See it at ACiQ
No store we check sells it online; the maker lists where to buy or who installs it.
Pros
- Keeps heating down to −22 °F
- Among the most efficient here: HSPF2 13.5, SEER2 21
- 12-year compressor warranty once registered (7 years on parts)
- Very quiet indoor unit, rated from 16 dB(A)
Cons
- Needs a licensed HVAC installer: a self-install voids the warranty
How it scores
The rating comes from 4 measured or published factors, each scored 0-100 against fixed reference points for its size. How we rank explains each one.
Specifications
| Capacity (certified) | |
|---|---|
| Size (nominal) | 24,000 BTU |
| Cooling at 95 °F | 24,000 Btu/h |
| Heating at 47 °F | 29,000 Btu/h |
| Heating at 17 °F (max) | 23,200 Btu/h |
| Heating at 5 °F (max) | 24,200 Btu/h |
| Heat kept at 5 °F | 83% |
| Efficiency (certified) | |
| HSPF2 (Region IV) | 13.5 |
| SEER2 | 21 |
| EER2 | 13 |
| COP at 5 °F | 2.34 |
| ENERGY STAR | ENERGY STAR Cold Climate |
| AHRI certificate | 216032337 |
| Operating range | |
| Heats down to | -22 °F |
| Cooling range | -22 to 122 °F |
| Installation | |
| Installed by | Professional (sold through installers) |
| Line set connection | Flare fittings (vacuum pump needed) |
| Line set | up to 164 ft |
| Voltage | 230 V |
| Refrigerant | R-454B |
| Indoor unit | ACIQ-24W-HH-MD |
| Outdoor unit | ACIQ-24ZPL-HP230C |
| Build | |
| Indoor noise | 16–54.5 dB(A) |
| Outdoor noise | 61.5 dB(A) |
| Wi-Fi | Optional module |
| Weight | indoor 43.6 lb / outdoor 130.3 lb |
| Warranty | 12 yr compressor, 7 yr parts |
| Warranty with DIY install | No, a licensed installer is required |
