SunGoldPower 6000W 48V Split Phase
For an off-grid home or cabin that wants 120/240 V split phase from a 48 V bank for the lowest price. Expect to accept a short warranty and no verified listing.
Amazon $1,390 SunGoldPower $1,355$1,355
3.1/5
For a small off-grid home that needs 120/240 V split phase from a 48 V bank on a tight budget, fed by a 240 V generator. Larger homes should step up to the 6 kW.
- 4,000 WContinuous
- 12,000 WSurge
- 120/240 V split-phaseOutput
- 48 WIdle draw
- NoUL listed
- 3 yearsWarranty
Check price at Amazon$1,492
Price checked October 24, 2026. As an Amazon Associate we earn from qualifying purchases.
Pros
- Runs 240 V loads such as a well pump alongside 120 V circuits
- 12,000 W surge for 20 seconds handles motor starts
- Switches to battery in 10 ms when the grid drops
- Cheapest way into a split-phase 48 V inverter-charger
Cons
- Needs a 240 V source to charge, so a 120 V-only generator won’t work
- No UL listing, so many inspectors won’t approve it
- 4,000 W is tight for 240 V pumps plus household loads at once
The AIMS Power PICOGLF 48V (2-6 kW) family
Every AIMS Power PICOGLF 48V (2-6 kW) model we rank, smallest first. Ratings compare each against its own size.
| Model | Continuous | Rating | Price |
|---|---|---|---|
| AIMS Power 2000W 48V Inverter Charger | 2,000 W | 3.0/5 | $1,007 |

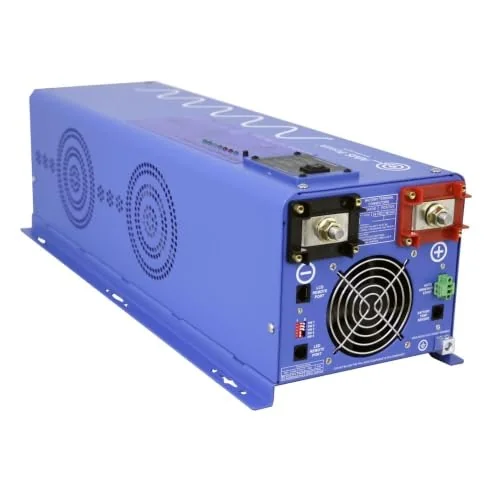

| AIMS Power 4000W 48V Split Phase (this one) | 4,000 W | 3.1/5 | $1,492 |
| AIMS Power 6000W 48V Inverter Charger | 6,000 W | 2.8/5 | $2,228.99 |
| AIMS Power 6000W 48V Split Phase | 6,000 W | 3.0/5 | $2,249 |
How it scores
The rating comes from 6 measured or published factors, each scored 0-100 against fixed reference points for its size. How we rank explains each one.
Specifications
| Model number | PICOGLF40W48V240VS |
|---|---|
| Output | |
| Type | Pure sine wave inverter-charger |
| AC output | 120/240 V split-phase |
| Continuous power | 4,000 W |
| Surge power | 12,000 W for 20 s |
| DC input range | 40 to 64 V |
| Idle draw | 48 W (1 A at 48 V) |
| Power-saving draw | 19.4 W |
| Peak efficiency | 88% |
| Connections | |
| AC outlets | 0 |
| GFCI outlets | No |
| Hardwire terminal | Yes |
| USB ports | None |
| Transfer switch | Yes |
| Pass-through rating | 30 A |
| Charger | 40 A |
| Lithium charge profile | Yes |
| Parallel units | No |
| Control and build | |
| Remote | Optional extra |
| App | Optional add-on |
| Display | No |
| Safety listing | No |
| Design | Low-frequency (transformer) |
| Cooling | load-controlled fan |
| Dimensions | 28.25 x 8.88 x 7.5 in |
| Weight | 57 lb |
| Warranty | 3 years |
Alternatives in this size
AIMS Power 8000W 48V Split Phase ETL
For an off-grid or backup home on 48 V that needs a listed split-phase inverter-charger with heavy surge at a lower price than Outback or Schneider.
Amazon $4,611.27 AIMS Power $4,480$4,480
Sigineer APC3048D
A heavy, surge-strong 3,000 W 48 V inverter-charger for off-grid or backup systems on a budget, where a UL listing is not required.
Sigineer $799$799
Compare
Compare the AIMS Power 4000W 48V Split Phase with any other 48V inverter →
More from AIMS Power: every AIMS Power product ranked.
