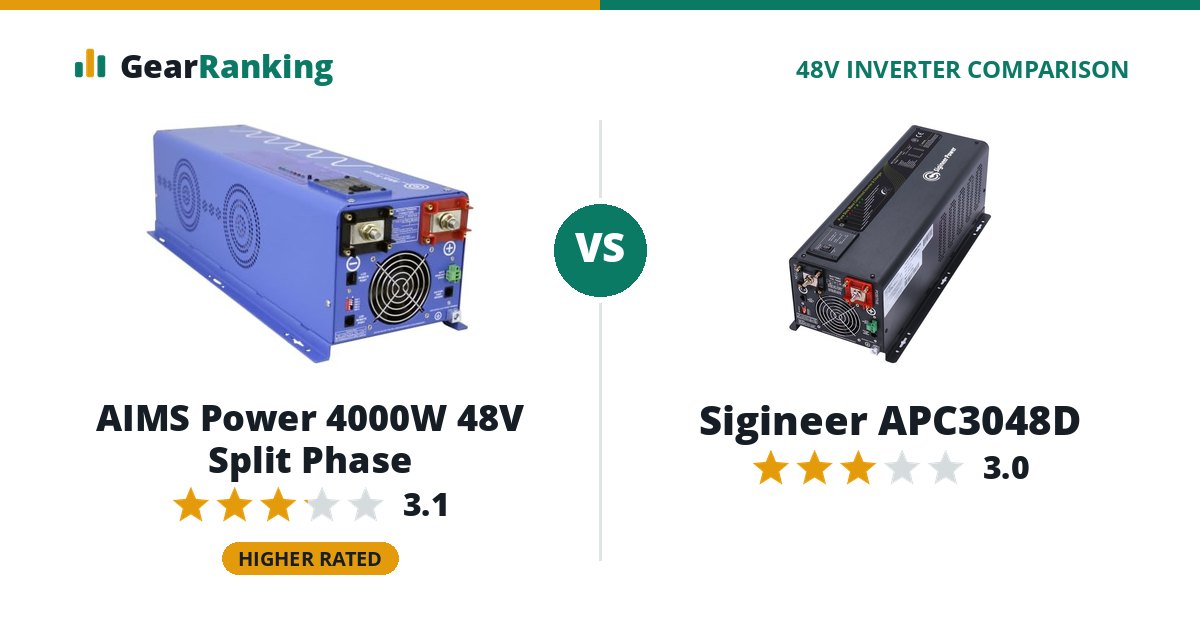

AIMS Power 4000W 48V Split Phase
For a small off-grid home that needs 120/240 V split phase from a 48 V bank on a tight budget, fed by a 240 V generator. Larger homes should step up to the 6 kW.
Amazon $1,492$1,492
The AIMS Power 4000W 48V Split Phase is the better 48V inverter overall, rated 3.1 to 3.0. The AIMS Power 4000W 48V Split Phase leads on warranty and features. The Sigineer APC3048D wins on value. The Sigineer APC3048D costs $693 less ($799 vs $1,492).
Sigineer APC3048D
A heavy, surge-strong 3,000 W 48 V inverter-charger for off-grid or backup systems on a budget, where a UL listing is not required.
Sigineer $799$799
Prices were last checked October 24, 2026 and are subject to change; the price and availability shown by the retailer at the time of purchase apply.
Which should you buy?
- Choose the AIMS Power 4000W 48V Split Phase for warranty (3-year warranty vs 1-year warranty) and features (optional remote, app add-on, lithium charge profile, 120/240 V split-phase, hardwire terminal vs optional remote, lithium charge profile, 120/240 V split-phase, hardwire terminal; no app).
- Choose the Sigineer APC3048D for value ($0.27 per continuous watt vs $0.37 per continuous watt).
Scores side by side
Each factor is scored 0-100 against the same fixed reference points for every split-phase inverter-chargers 48V inverter; a clear win is highlighted. How we rank explains each one.
| Factor weight | AIMS Power 4000W 48V Split Phase | Sigineer APC3048D |
|---|---|---|
| Overall rating | 3.1/5 | 3.0/5 |
| Value 30% | 39 $0.37 per continuous watt | 63 $0.27 per continuous watt |
| Idle draw 15% | 87 48 W idle with nothing plugged in | 80 60 W idle with nothing plugged in |
| Safety listing 15% | 0 no UL 458 or UL 1741 listing stated | 0 no UL 458 or UL 1741 listing stated |
| Warranty 15% | 50 3-year warranty | 0 1-year warranty |
| Features 15% | 70 optional remote, app add-on, lithium charge profile, 120/240 V split-phase, hardwire terminal | 60 optional remote, lithium charge profile, 120/240 V split-phase, hardwire terminal; no app |
| Efficiency 10% | 33 88% peak efficiency (maker rating) | 33 88% peak efficiency (maker rating) |
Specifications
| AIMS Power 4000W 48V Split Phase | Sigineer APC3048D | |
|---|---|---|
| Output | ||
| Type | Pure sine wave inverter-charger | Pure sine wave inverter-charger |
| AC output | 120/240 V split-phase | 120/240 V split-phase |
| Continuous power | 4,000 W | 3,000 W |
| Surge power | 12,000 W for 20 s | 9,000 W for 20 s |
| DC input range | 40 to 64 V | 40 to 64 V |
| Idle draw | 48 W (1 A at 48 V) | 60 W (1.2 A at 48 V) |
| Power-saving draw | 19.4 W | 15 W |
| Peak efficiency | 88% | 88% |
| Connections | ||
| AC outlets | 0 | 0 |
| GFCI outlets | No | No |
| Hardwire terminal | Yes | Yes |
| USB ports | None | None |
| Transfer switch | Yes | Yes |
| Pass-through rating | 30 A | 30 A |
| Charger | 40 A | 30 A |
| Lithium charge profile | Yes | Yes |
| Parallel units | No | No |
| Control and build | ||
| Remote | Optional extra | Optional extra |
| App | Optional add-on | No |
| Display | No | No |
| Safety listing | No | No |
| Design | Low-frequency (transformer) | Low-frequency (transformer) |
| Cooling | load-controlled fan | fan |
| Dimensions | 28.25 x 8.88 x 7.5 in | 20 x 8.5 x 7 in (508 x 222 x 180 mm) |
| Weight | 57 lb | 49 lb |
| Warranty | 3 years | 1 year |
